E300-70/2-212

Active

Boyd Laconia, LLC

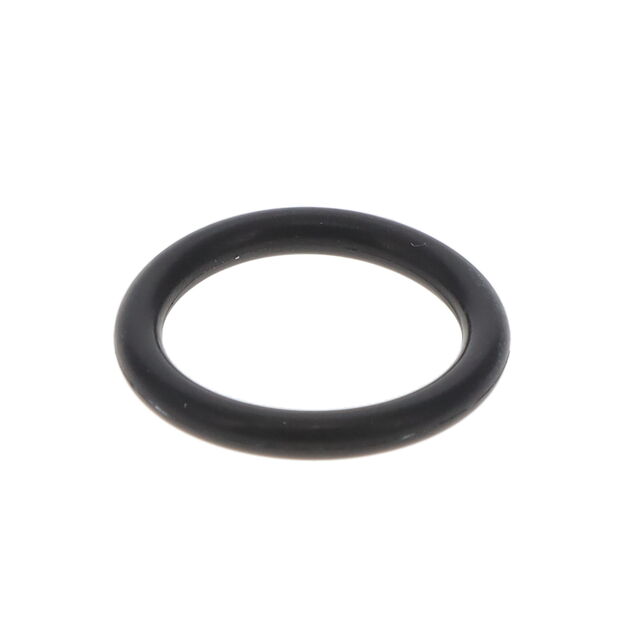

EPDM -212 O-RING

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

EPDM -212 O-RING

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Dash Number	Color	Hardness	Width / Cross Section [y]	Width / Cross Section [y]	Material	Width / Cross Section [x]	Width / Cross Section [x]	Dash Number
Boyd Laconia, LLC E300-70/2-110	149 °C	-54 °C	0.362 in	9.19 mm	-110	Black	70 Shore A	2.62 mm	0.103 in	EPDM
Boyd Laconia, LLC E300-70/2-326	149 °C	-54 °C	1.6 in	40.64 mm	-326	Black	70 Shore A			EPDM	0.21 in	5.33 mm
Boyd Laconia, LLC E300-70/2-112	149 °C	-54 °C	0.487 in	12.37 mm	-112	Black	70 Shore A	2.62 mm	0.103 in	EPDM
Boyd Laconia, LLC E300-70/2-217	149 °C	-54 °C	1.171 in	29.74 mm		Black	70 Shore A	3.53 mm	0.139 in	EPDM			-217
Boyd Laconia, LLC E300-70/2-327	149 °C	-54 °C	1.725 in	43.82 mm	-327	Black	70 Shore A			EPDM	0.21 in	5.33 mm
Boyd Laconia, LLC E300-70/2-212	149 °C	-54 °C	0.859 in	21.82 mm	-212	Black	70 Shore A	3.53 mm	0.139 in	EPDM
Boyd Laconia, LLC E300-70/2-010	149 °C	-54 °C	0.239 in	6.07 mm	-010	Black	70 Shore A	1.78 mm	0.07 in	EPDM
Boyd Laconia, LLC E300-70/2-216	149 °C	-54 °C	1.109 "	28.17 mm	-216	Black	70 Shore A	3.53 mm	0.139 in	EPDM
Boyd Laconia, LLC E300-70/2-222	149 °C	-54 °C	1.484 in	37.69 mm		Black	70 Shore A	3.53 mm	0.139 in	EPDM			-222
Boyd Laconia, LLC E300-70/2-116	149 °C	-54 °C	0.737 in	18.72 mm	-116	Black	70 Shore A	2.62 mm	0.103 in	EPDM
