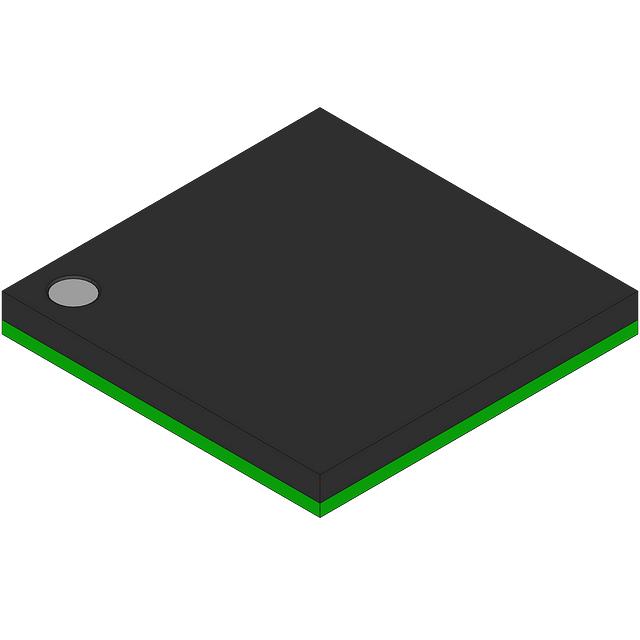

AT91SAM7X128C-CU

Active

Atmel

IC MCU 16/32BIT 128KB 100TFBGA

Search across all available documentation for this part.

Active

Atmel

IC MCU 16/32BIT 128KB 100TFBGA

Technical Specifications

Parameters and characteristics for this part

Specification	AT91SAM7X128C-CU

Connectivity	CANbus, SSC, I2C, Ethernet, UART/USART, USB, SPI
Core Processor	ARM7®
Core Size [Max]	32 Bit
Core Size [Min]	16 Bit
Data Converters [custom]	8
Data Converters [custom]	10
Mounting Type	Surface Mount
Number of I/O	62
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT, PWM
Program Memory Size	128 KB
Program Memory Type	FLASH
Speed	55 MHz
Supplier Device Package	100-TFBGA (9x9)

Part	Oscillator Type	Speed	Mounting Type	Core Size [Min]	Core Size [Max]	Data Converters [custom]	Data Converters [custom]	Connectivity	Core Processor	Program Memory Size	Supplier Device Package	Program Memory Type	Peripherals	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]
Atmel AT91SAM7X128C-CU	Internal	55 MHz	Surface Mount	16 Bit	32 Bit	8	10	CANbus Ethernet I2C SPI SSC UART/USART USB	ARM7®	128 KB	100-TFBGA (9x9)	FLASH	Brown-out Detect/Reset DMA POR PWM WDT	62	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ARM7® SAM7X Microcontroller IC 16/32-Bit 55MHz 128KB (128K x 8) FLASH 100-TFBGA (9x9)
