2303-6211-TG
Obsolete3M (TC)

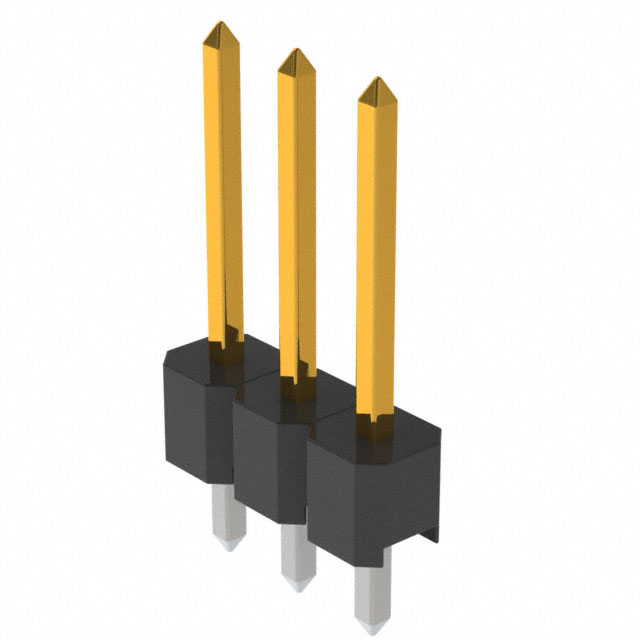

CONN HEADER VERT 3POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2303-6211-TG
Obsolete3M (TC)
CONN HEADER VERT 3POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2303-6211-TG |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating [x] | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.538 " |
| Overall Contact Length | 13.67 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
2303 Series
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Contact Finish - Post | Termination | Mounting Type | Shrouding | Contact Length - Mating [x] | Contact Length - Mating [x] | Overall Contact Length | Overall Contact Length | Contact Finish - Mating | Contact Shape | Material Flammability Rating | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Style | Contact Length - Post [x] | Contact Length - Post [x] | Contact Type | Insulation Color | Number of Rows | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Current Rating (Amps) | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 10 çin | 0.25 çm | Push-Pull | Tin-Lead | Solder | Through Hole | Unshrouded | 0.318 " | 8.08 mm | 0.538 " | 13.67 mm | Gold | Square | UL94 V-0 | All | 105 ░C | -55 °C | Copper Alloy | Board to Board Cable | 0.12 in | 3.05 mm | Male Pin | Black | 1 | Header | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | 3 A | |
3M (TC) | Push-Pull | Tin-Lead | Solder | Through Hole | Unshrouded | 0.318 " | 8.08 mm | 0.538 " | 13.67 mm | Tin-Lead | Square | UL94 V-0 | All | 105 ░C | -55 °C | Copper Alloy | Board to Board Cable | 0.12 in | 3.05 mm | Male Pin | Black | 1 | Header | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | 3 A | |||
3M (TC) | Push-Pull | Tin-Lead | Solder | Through Hole | Unshrouded | 0.23 in | 0.45 " | 11.43 mm | Tin-Lead | Square | UL94 V-0 | All | 105 ░C | -55 °C | Copper Alloy | Board to Board Cable | 0.12 in | 3.05 mm | Male Pin | Black | 1 | Header | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | 3 A | 5.84 mm | |||
3M (TC) | 10 çin | 0.25 çm | Push-Pull | Tin-Lead | Solder | Through Hole | Unshrouded | 0.23 in | 0.45 " | 11.43 mm | Gold | Square | UL94 V-0 | All | 105 ░C | -55 °C | Copper Alloy | Board to Board Cable | 0.12 in | 3.05 mm | Male Pin | Black | 1 | Header | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | 3 A | 5.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2303 Series
Connector Header Through Hole 3 position 0.100" (2.54mm)
