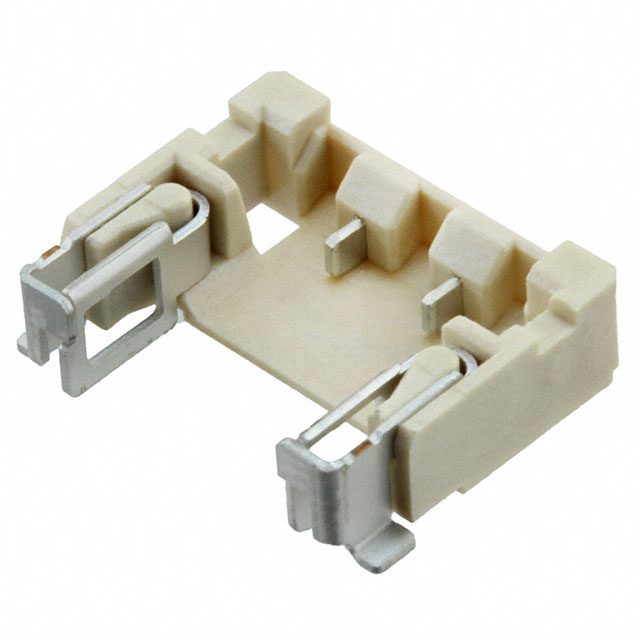

ES9P002VFZR1600
ActiveJAE Electronics
CONN HEADER SMD R/A 2POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ES9P002VFZR1600
ActiveJAE Electronics
CONN HEADER SMD R/A 2POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ES9P002VFZR1600 |
|---|---|
| Connector Type | Plug |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Current Rating (Amps) | 4 A |
| Fastening Type | Spring Lock |
| Features | Solder Retention |
| Insulation Color | Ivory |
| Insulation Height | 0.118 in |
| Insulation Height | 3 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Shrouding | Shrouded - 3 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 300 VDC |
