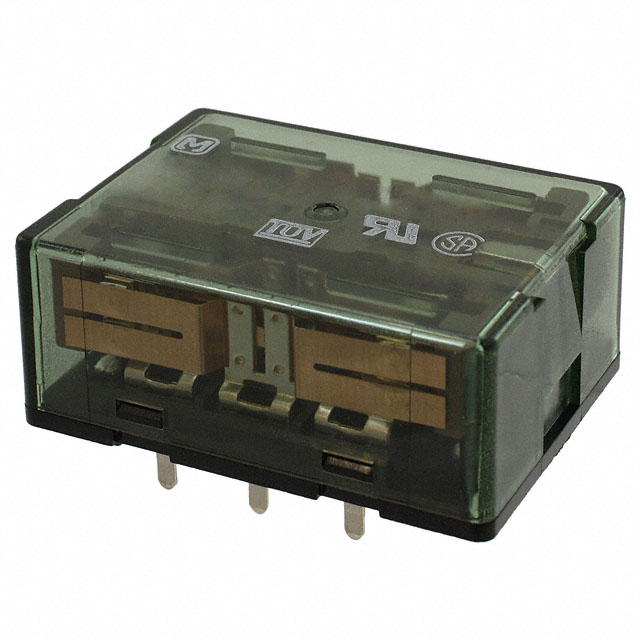

SP4-PL2-DC24V

Active

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 10A 24V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 10A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Mounting Type	Coil Voltage	Approval Agency	Load - Max Switching	Coil Type	Contact Form	Contact Rating (Current)	Termination Style	Must Operate Voltage	Operate Time	Relay Type	Coil Resistance	Release Time	Coil Current	Contact Material
Panasonic Electric Works SP4-PL2-DC48V	60 °C	-50 °C	30 VDC 250 VAC	Through Hole	48 VDC	CSA UR VDE	300 W 2500 VA	Latching Dual Coil	4PDT (4 Form C)	10 A	PC Pin	33.6 VDC	30 ms	General Purpose	7.7 kOhms	30 ms	6.2 mA	Silver Tin Oxide (AgSnO)
Panasonic Electric Works SP4-PL2-DC24V	60 °C	-50 °C	30 VDC 250 VAC	Through Hole	24 VDC	CSA UR VDE	300 W 2500 VA	Latching Dual Coil	4PDT (4 Form C)	10 A	PC Pin	16.8 VDC	30 ms	General Purpose	1.92 kOhms	30 ms		Silver Tin Oxide (AgSnO)
Panasonic Electric Works SP4-PL2-DC12V	60 °C	-50 °C	30 VDC 250 VAC	Through Hole	12 VDC	CSA UR VDE	300 W 2500 VA	Latching Dual Coil	4PDT (4 Form C)	10 A	PC Pin	8.4 VDC	30 ms	General Purpose	480 Ohms	30 ms		Silver Tin Oxide (AgSnO)
