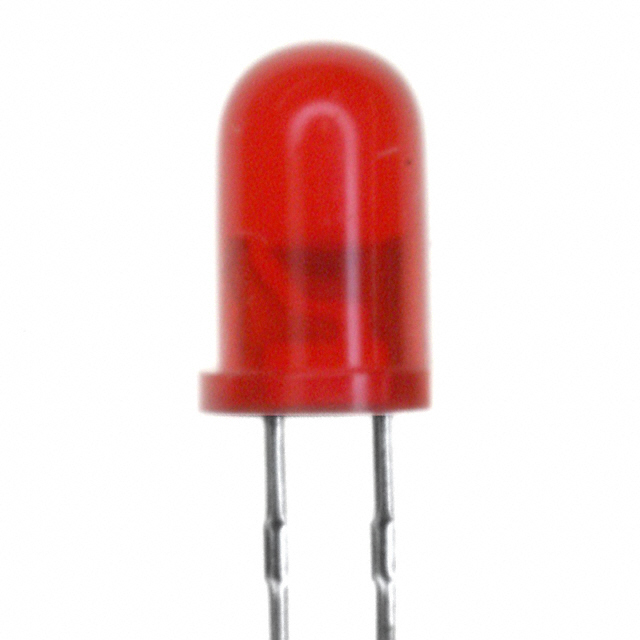

L53HD

Obsolete

Kingbright

LED RED DIFFUSED T-1 3/4 T/H

Search across all available documentation for this part.

Obsolete

Kingbright

LED RED DIFFUSED T-1 3/4 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Viewing Angle	Millicandela Rating	Package / Case	Current - Test	Lens Size	Lens Size	Lens Transparency	Mounting Type	Height (Max) [Max] [z]	Lens Style	Voltage - Forward (Vf) (Typ)	Size / Dimension [diameter]	Configuration	Wavelength - Peak	Lens Color	Color	Wavelength - Dominant
Kingbright L53HD	T-1 3/4	60 °	5 mcd	Radial	10 mA	T-1 3/4	5 mm	Diffused	Through Hole	9.6 mm	Round with Domed Top	2.25 V	5 mm	Standard	700 nm	Red	Red
Kingbright L53IT	T-1 3/4	30 °	80 mcd	Radial	10 mA	T-1 3/4	5 mm	Clear	Through Hole	9.6 mm	Round with Domed Top	2 V	5 mm	Standard	627 nm	Red	Red	625 nm
Kingbright L53GT	T-1 3/4	30 °	60 mcd	Radial	10 mA	T-1 3/4	5 mm	Clear	Through Hole	9.6 mm	Round with Domed Top	2 V	5 mm	Standard	565 nm	Green	Green	568 nm
Kingbright L53YT	T-1 3/4	30 °	40 mcd	Radial	10 mA	T-1 3/4	5 mm	Clear	Through Hole	9.6 mm	Round with Domed Top	2.1 V	5 mm	Standard	590 nm	Yellow	Yellow	588 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red 660nm LED Indication - Discrete 2.25V Radial
