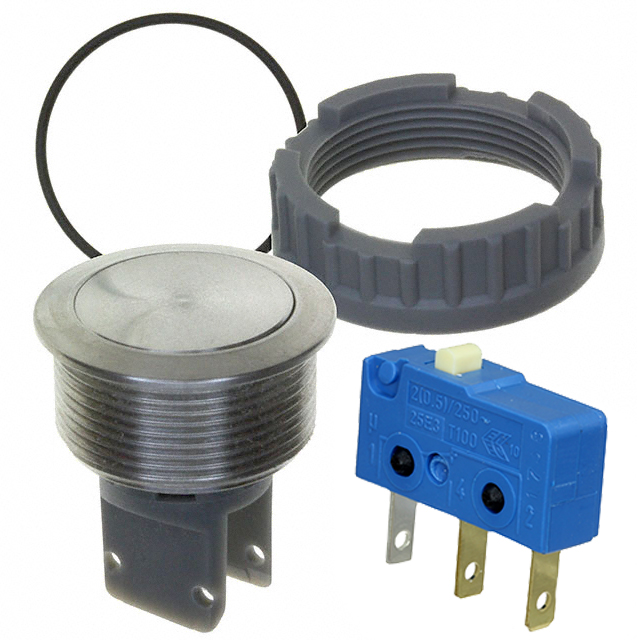

1241.6631.1110000

Obsolete

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 100MA 30V

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 100MA 30V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.6631.1110000

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	100 mA
Electrical Life	200000 Cycles
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal
Voltage Rating - DC	30 V

Part	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mechanical Life	Type	Switch Function	Color - Actuator/Cap	Electrical Life	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Circuit	Voltage Rating - DC	Ingress Protection	Actuator Marking	Mounting Type	Voltage Rating - AC
SCHURTER Inc. 1241.6631.1110000	Button Flush Round	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	1500000 Cycles	Anti-Vandal	On-Mom	Silver	200000 Cycles	100 mA	22.1 mm	SPDT	30 V	IP40	No Marking	Panel Mount Front
SCHURTER Inc. 1241.6631.1120000	Button Flush Round	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	1500000 Cycles	Anti-Vandal	On-Mom	Silver	200000 Cycles	5 A	22.1 mm	SPDT		IP40	No Marking	Panel Mount Front	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front

Technical documentation and resources
