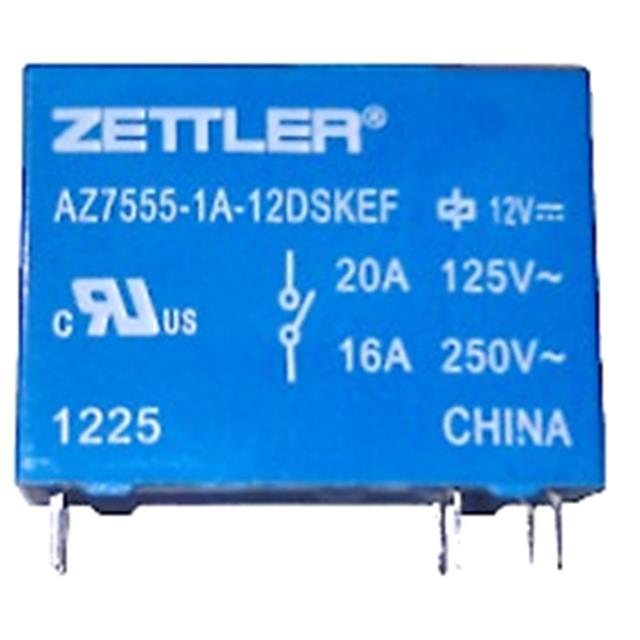

AZ7555-1A-12DSKEF

Active

American Zettler

RELAY GEN PURPOSE SPST 20A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AZ7555-1A-12DSKEF

Approval Agency	TUV, cUR, UL
Coil Current	44.4 mA
Coil Resistance	270 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	20 A
Load - Max Switching	5000 VA, 480 W
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	20 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	8 ms
Seal Rating	Sealed - Fully
Switching Voltage	277 VAC, 30 VDC
Termination Style	PC Pin

AZ7555-1A Series

Part	Must Release Voltage	Coil Insulation	Approval Agency	Relay Type	Contact Material	Release Time	Coil Type	Coil Resistance	Mounting Type	Contact Rating (Current)	Termination Style	Seal Rating	Contact Form	Coil Current	Must Operate Voltage	Coil Voltage	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Load - Max Switching
American Zettler AZ7555-1A-5DSSKEF	0.5 VDC	Class F	cUR TUV UL	General Purpose	Silver Tin Oxide (AgSnO)	8 ms	Non Latching	208 Ohms	Through Hole	20 A	PC Pin	Sealed - Fully	SPST-NO (1 Form A)	24 mA	3.75 VDC	5 VDC	30 VDC 277 VAC	85 °C	-40 °C	20 ms	480 W 5000 VA
American Zettler AZ7555-1A-5DSK	0.5 VDC		cUR TUV UL	General Purpose	Silver Tin Oxide (AgSnO)	8 ms	Non Latching	48.5 Ohms	Through Hole	20 A	PC Pin		SPST-NO (1 Form A)	103.1 mA	3.75 VDC	5 VDC	30 VDC 277 VAC	85 °C	-40 °C	20 ms	480 W 5000 VA
American Zettler AZ7555-1A-12DSKEF	1.2 VDC		cUR TUV UL	General Purpose	Silver Tin Oxide (AgSnO)	8 ms	Non Latching	270 Ohms	Through Hole	20 A	PC Pin	Sealed - Fully	SPST-NO (1 Form A)	44.4 mA	9 VDC	12 VDC	30 VDC 277 VAC	85 °C	-40 °C	20 ms	480 W 5000 VA
American Zettler AZ7555-1A-48DSKE	4.8 VDC		cUR TUV UL	General Purpose	Silver Tin Oxide (AgSnO)	8 ms	Non Latching	4.4 kOhms	Through Hole	20 A	PC Pin	Sealed - Fully	SPST-NO (1 Form A)	10.9 mA	36 VDC	48 VDC	30 VDC 277 VAC	85 °C	-40 °C	20 ms	480 W 5000 VA
American Zettler AZ7555-1A-24DKE	2.4 VDC		cUR TUV UL	General Purpose	Silver Tin Oxide (AgSnO)	8 ms	Non Latching	820 Ohms	Through Hole	20 A	PC Pin	Sealed - Fully	SPST-NO (1 Form A)	29.3 mA	16.8 VDC	24 VDC	30 VDC 277 VAC	85 °C	-40 °C	15 ms	480 W 5000 VA
American Zettler AZ7555-1A-60DSKEF	6 VDC	Class F	cUR TUV UL	General Purpose	Silver Tin Oxide (AgSnO)	8 ms	Non Latching	6.67 kOhms	Through Hole	20 A	PC Pin	Sealed - Fully	SPST-NO (1 Form A)	9 mA	45 VDC	60 VDC	30 VDC 277 VAC	85 °C	-40 °C	20 ms	480 W 5000 VA
American Zettler AZ7555-1A-24DSSKE	2.4 VDC		cUR TUV UL	General Purpose	Silver Tin Oxide (AgSnO)	8 ms	Non Latching	4.8 kOhms	Through Hole	20 A	PC Pin	Sealed - Fully	SPST-NO (1 Form A)	5 mA	18 VDC	24 VDC	30 VDC 277 VAC	85 °C	-40 °C	20 ms	480 W 5000 VA
American Zettler AZ7555-1A-18DSSKF	1.8 VDC	Class F	cUR TUV UL	General Purpose	Silver Tin Oxide (AgSnO)	8 ms	Non Latching	2.7 kOhms	Through Hole	20 A	PC Pin		SPST-NO (1 Form A)	6.7 mA	13.5 VDC	18 VDC	30 VDC 277 VAC	85 °C	-40 °C	20 ms	480 W 5000 VA
