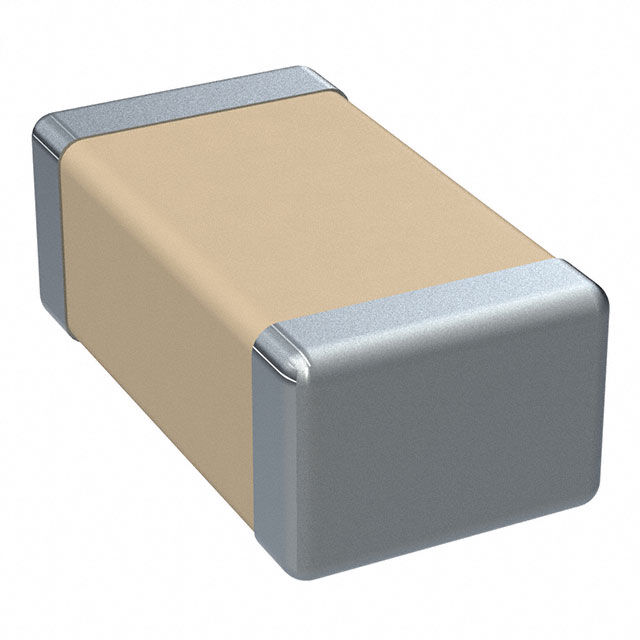

C0805F472K1RACAUTO

Active

KEMET

SMD MULTILAYER CERAMIC CAPACITOR, AEC-Q200 C SERIES, 4700 PF, 10%, X7R, 100 V, 0805 [2012 METRIC] ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C0805F472K1RACAUTO +3

C0805F472K1RACAUTO

Active

KEMET

SMD MULTILAYER CERAMIC CAPACITOR, AEC-Q200 C SERIES, 4700 PF, 10%, X7R, 100 V, 0805 [2012 METRIC] ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet C0805F472K1RACAUTO +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C0805F472K1RACAUTO

Applications	Automotive
Capacitance	4700 pF
Features	Open Mode
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Ratings	AEC-Q200
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Temperature Coefficient	X7R
Thickness (Max) [Max]	1 mm
Thickness (Max) [Max]	0.039 in
Tolerance	10 %
Voltage - Rated	100 V

C0805F Series

Part	Temperature Coefficient	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Features	Tolerance	Voltage - Rated	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Thickness (Max) [Max] [custom]	Ratings	Voltage - Rated [custom]
KEMET C0805F473K5RACTU	X7R	MLCC Surface Mount	1 mm	0.039 in	Open Mode	10 %	50 VDC	General Purpose	2 mm	0.079 in	0.049 in	1.25 mm	0805	-55 °C	125 °C
KEMET C0805F104K3RACAUTO	X7R	MLCC Surface Mount	1.4 mm		Open Mode	10 %	25 VDC	Automotive	2 mm	0.079 in	0.049 in	1.25 mm	0805	-55 °C	125 °C	100000 pF	0.055 in	AEC-Q200
KEMET C0805F472K5RACAUTO	X7R	MLCC Surface Mount	1 mm	0.039 in	Open Mode	10 %	50 VDC	Automotive	2 mm	0.079 in	0.049 in	1.25 mm	0805	-55 °C	125 °C	4700 pF		AEC-Q200
KEMET C0805F123K5RAC7800	X7R	MLCC Surface Mount	1 mm	0.039 in	Open Mode	10 %	50 VDC	General Purpose	2 mm	0.079 in	0.049 in	1.25 mm	0805	-55 °C	125 °C	0.012 µF
KEMET C0805F474M3RACAUTO	X7R	MLCC Surface Mount	1.4 mm		Open Mode	20 %	25 VDC	Automotive	2 mm	0.079 in	0.049 in	1.25 mm	0805	-55 °C	125 °C	0.47 µF	0.055 in	AEC-Q200
KEMET C0805F683K5RACAUTO	X7R	MLCC Surface Mount	1.4 mm		Open Mode	10 %	50 VDC	Automotive	2 mm	0.079 in	0.049 in	1.25 mm	0805	-55 °C	125 °C	0.068 µF	0.055 in	AEC-Q200
KEMET C0805F472K1RACAUTO	X7R	MLCC Surface Mount	1 mm	0.039 in	Open Mode	10 %	100 V	Automotive	2 mm	0.079 in	0.049 in	1.25 mm	0805	-55 °C	125 °C	4700 pF		AEC-Q200
KEMET C0805F683K5RACTU	X7R	MLCC Surface Mount	1.4 mm		Open Mode	10 %	50 VDC	General Purpose	2 mm	0.079 in	0.049 in	1.25 mm	0805	-55 °C	125 °C	0.068 µF	0.055 in
KEMET C0805F472K5RAC7800	X7R	MLCC Surface Mount	1 mm	0.039 in	Open Mode	10 %	50 VDC	General Purpose	2 mm	0.079 in	0.049 in	1.25 mm	0805	-55 °C	125 °C	4700 pF
KEMET C0805F224K4RACAUTO	X7R	MLCC Surface Mount	1.4 mm		Open Mode	10 %		Automotive	2 mm	0.079 in	0.049 in	1.25 mm	0805	-55 °C	125 °C	0.22 µF	0.055 in	AEC-Q200	16 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.31
		10	$ 0.18
		50	$ 0.16
		100	$ 0.12
		500	$ 0.10
		1000	$ 0.08
	Digi-Reel®	1	$ 0.31
		10	$ 0.18
		50	$ 0.16
		100	$ 0.12
		500	$ 0.10
		1000	$ 0.08
	Tape & Reel (TR)	4000	$ 0.08
		8000	$ 0.06
		12000	$ 0.06
		20000	$ 0.06
		28000	$ 0.06
		40000	$ 0.06
		100000	$ 0.06
		200000	$ 0.05
Newark	Each (Supplied on Cut Tape)	10	$ 0.18
		25	$ 0.15
		50	$ 0.13
		100	$ 0.11
		250	$ 0.10
		500	$ 0.10
		1000	$ 0.10

Description

General part information

C0805F Series

4700 pF ±10% 100V Ceramic Capacitor X7R 0805 (2012 Metric)

Documents

Technical documentation and resources

Datasheet
