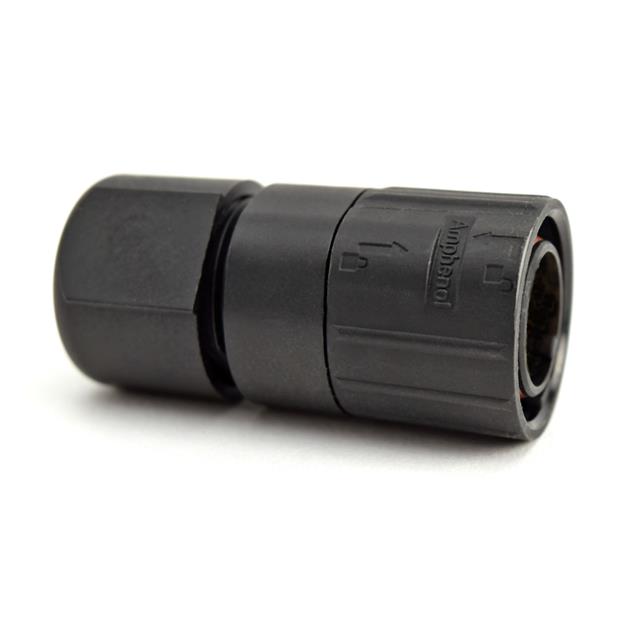

MALE CABLE CONNECTOR, QUICKLOCK,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC091 M16 Q Quicklock Datasheet

C09111H0080025U

Active

Amphenol Sine Systems Corp

MALE CABLE CONNECTOR, QUICKLOCK,

Deep-Dive with AI

DocumentsC091 M16 Q Quicklock Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C09111H0080025U

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	M16-8
Shielding	Unshielded
Type	For Male Pins

C09111H Series

Part	Orientation	Contact Type	Material Flammability Rating	Primary Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Shell Size - Insert	Connector Type	Type	Ingress Protection	Mounting Type	Contact Size	Note	Features	Contact Shape	Shielding	Housing Color
Amphenol Sine Systems Corp C09111H0120005U	Keyed	Crimp	UL94 V-0	Plastic	12	100 °C	-40 °C	Thermoplastic	M16-12	Plug Housing	For Male Pins	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	1 mm	Contacts Not Included	Backshell Coupling Nut	Circular	Unshielded	Black
Amphenol Sine Systems Corp C09111H0140025U	Keyed	Crimp	UL94 V-0	Plastic	14	100 °C	-40 °C	Thermoplastic	M16-14	Plug Housing	For Male Pins	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	1 mm	Contacts Not Included	Backshell Coupling Nut	Circular	Unshielded	Black
Amphenol Sine Systems Corp C09111H0080005U	Keyed	Crimp	UL94 V-0	Plastic	8	100 °C	-40 °C	Thermoplastic	M16-8	Plug Housing	For Male Pins	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	1.5 mm	Contacts Not Included	Backshell Coupling Nut	Circular	Unshielded	Black
Amphenol Sine Systems Corp C09111H0080025U	Keyed	Crimp	UL94 V-0	Plastic	8	100 °C	-40 °C	Thermoplastic	M16-8	Plug Housing	For Male Pins	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	1.5 mm	Contacts Not Included	Backshell Coupling Nut	Circular	Unshielded	Black
Amphenol Sine Systems Corp C09111H0040025U	Keyed	Crimp	UL94 V-0	Plastic	4	100 °C	-40 °C	Thermoplastic	M16-4	Plug Housing	For Male Pins	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	1.5 mm	Contacts Not Included	Backshell Coupling Nut	Circular	Unshielded	Black
Amphenol Sine Systems Corp C09111H0050025U	Keyed	Crimp	UL94 V-0	Plastic		100 °C	-40 °C	Thermoplastic	M16-5	Plug Housing	For Male Pins	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	1.5 mm	Contacts Not Included	Backshell Coupling Nut	Circular	Unshielded	Black
Amphenol Sine Systems Corp C09111H0120025U	Keyed	Crimp	UL94 V-0	Plastic	12	100 °C	-40 °C	Thermoplastic	M16-12	Plug Housing	For Male Pins	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	1 mm	Contacts Not Included	Backshell Coupling Nut	Circular	Unshielded	Black
Amphenol Sine Systems Corp C09111H0050005U	Keyed	Crimp	UL94 V-0	Plastic		100 °C	-40 °C	Thermoplastic	M16-5	Plug Housing	For Male Pins	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	1.5 mm	Contacts Not Included	Backshell Coupling Nut	Circular	Unshielded	Black
Amphenol Sine Systems Corp C09111H1070025U	Keyed	Crimp	UL94 V-0	Plastic	7	100 °C	-40 °C	Thermoplastic	M16-7	Plug Housing	For Male Pins	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	1.5 mm	Contacts Not Included	Backshell Coupling Nut	Circular	Unshielded	Black
Amphenol Sine Systems Corp C09111H0070025U	Keyed	Crimp	UL94 V-0	Plastic	7	100 °C	-40 °C	Thermoplastic	M16-7	Plug Housing	For Male Pins	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	1.5 mm	Contacts Not Included	Backshell Coupling Nut	Circular	Unshielded	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.80
		10	$ 6.75
		25	$ 6.09
		50	$ 5.65
		100	$ 5.25
		250	$ 4.77
		500	$ 4.45
		1000	$ 4.16
		2500	$ 3.88

Description

General part information

C09111H Series

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
