DH22U1NBSRN

Active

CIT Relay and Switch

PUSH BUTTON SWITCH ROHS

Search across all available documentation for this part.

Active

CIT Relay and Switch

PUSH BUTTON SWITCH ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	DH22U1NBSRN

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Illumination Type, Color	Red, LED
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

Part	Color - Actuator/Cap	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - AC	Illumination Type, Color	Switch Function	Current Rating (Amps)	Electrical Life	Circuit	Mounting Type	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Type	Actuator Marking	Ingress Protection	Features
CIT Relay and Switch DH22U2NBBBN	Black	Anti-Vandal Illuminated	55 °C	-20 C	1000000 Cycles	125 V	Blue LED	On-Mom	3 A	50000 Cycles	DPDT	Panel Mount Front	Solder Lug	22 mm	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof
CIT Relay and Switch DH22U1NBSRN	Silver	Anti-Vandal Illuminated	55 °C	-20 C	1000000 Cycles	125 V	LED Red	On-Mom	3 A	50000 Cycles	SPDT	Panel Mount Front	Solder Lug	22 mm	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof
CIT Relay and Switch DH22U1LBSRN	Silver	Anti-Vandal Illuminated	55 °C	-20 C	500000 Cycles	125 V	LED Red	On-On	3 A	50000 Cycles	SPDT	Panel Mount Front	Solder Lug	22 mm	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	Stainless Steel
CIT Relay and Switch DH22U2NASZZ	Silver	Anti-Vandal	55 °C	-20 C	1000000 Cycles	125 V		On-Mom	3 A	50000 Cycles	DPDT	Panel Mount Front	Solder Lug	22 mm	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	Stainless Steel
CIT Relay and Switch DH22U1NABZZ	Black	Anti-Vandal	55 °C	-20 C	1000000 Cycles	125 V		On-Mom	3 A	50000 Cycles	SPDT	Panel Mount Front	Solder Lug	22 mm	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 13.07
LCSC	Piece	1	$ 4.95

General part information

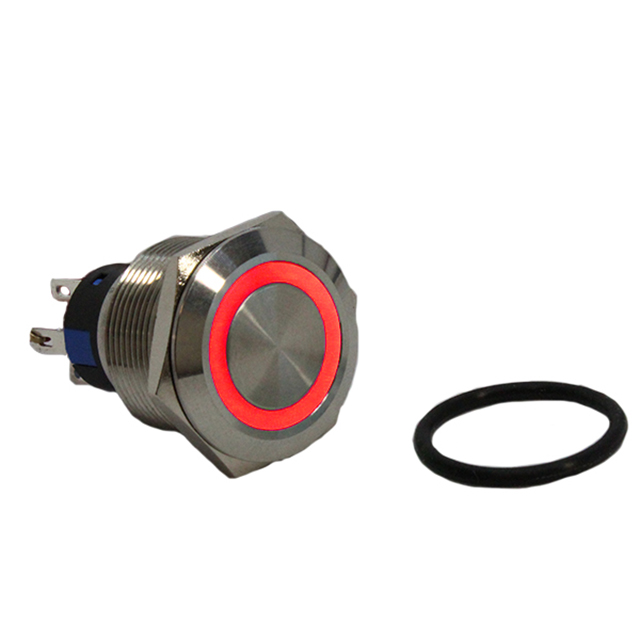

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
