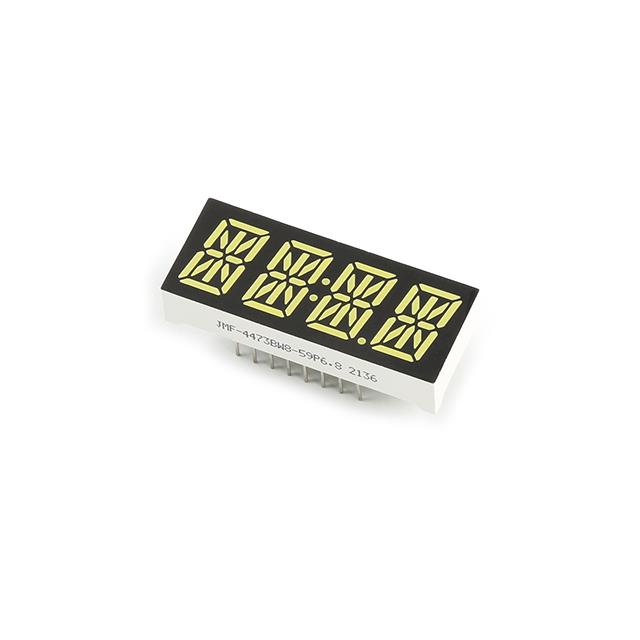

14-SEGMENT ALPHANUMERIC DISPLAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
COM-21213
ActiveSparkFun Electronics
14-SEGMENT ALPHANUMERIC DISPLAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | COM-21213 |
|---|---|
| Color | White |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 11.85 mm |
| Digit/Alpha Size | 0.47 in |
| Display Type | 14-Segment, Alphanumeric |
| Millicandela Rating [Max] | 70 mcd |
| Millicandela Rating [Min] | 65 mcd |
| Number of Characters | 4 |
| Package / Case | 16-DIP |
| Package / Case [x] | 0.478 in |
| Package / Case [x] | 12.15 mm |
| Power Dissipation (Max) [Max] | 70 mW |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 1.575 in |
| Size / Dimension [y] | 40 mm |
| Size / Dimension [z] | 16 mm |
| Size / Dimension [z] | 0.63 in |
| Voltage - Forward (Vf) (Typ) [Max] | 3.6 V |
| Voltage - Forward (Vf) (Typ) [Min] | 2.7 V |
| Wavelength - Peak | 15000 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.50 | |
Description
General part information
COM-212 Series
Display Modules - LED Character and Numeric White 14-Segment, Alphanumeric 4 Character Common Anode 2.7V ~ 3.6V 20mA 0.630" H x 1.575" W x 0.315" D (16.00mm x 40.00mm x 8.00mm) 16-DIP (0.478", 12.15mm)
