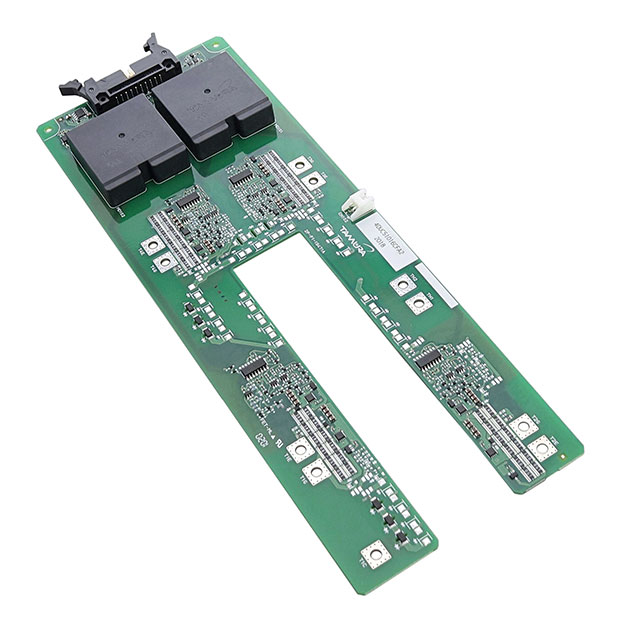

4DUC51016CFA2

Active

Tamura

IC GATE DRVR HALF-BRIDGE MODULE

Search across all available documentation for this part.

Active

Tamura

IC GATE DRVR HALF-BRIDGE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	4DUC51016CFA2

Channel Type	Synchronous
Driven Configuration	Half-Bridge
Gate Type	IGBT
High Side Voltage - Max (Bootstrap) [Max]	1200 V
Input Type	Non-Inverting
Mounting Type	Chassis Mount
Number of Drivers	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	13 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	High Side Voltage - Max (Bootstrap) [Max]	Channel Type	Supplier Device Package	Driven Configuration	Gate Type	Number of Drivers	Input Type	Mounting Type	Package / Case
Tamura 4DUC51016CFA1	28 V	13 V	85 °C	-40 °C	1200 V	Synchronous	Module	Half-Bridge	IGBT	4	Non-Inverting	Chassis Mount	Module
Tamura 4DUC51016CFA2	28 V	13 V	85 °C	-40 °C	1200 V	Synchronous	Module	Half-Bridge	IGBT	4	Non-Inverting	Chassis Mount	Module
Tamura 4DUD51016CFN1	28 V	13 V	85 °C	-40 °C	1200 V	Synchronous	Module	Half-Bridge	IGBT	4	Non-Inverting	Chassis Mount	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 155.15

General part information

Half-Bridge Gate Driver IC Non-Inverting Module
