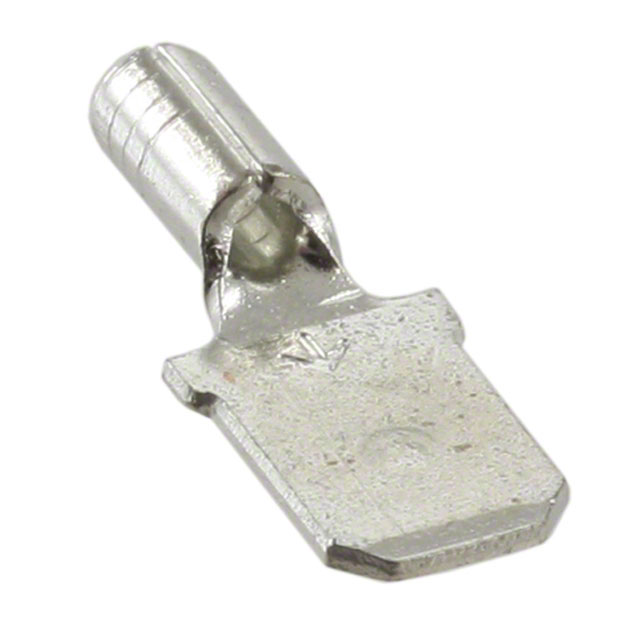

MU18-250DMK

Active

3M (TC)

CONN QC TAB 18-22AWG 0.250 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MU18-250DMK

Active

3M (TC)

CONN QC TAB 18-22AWG 0.250 CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MU18-250DMK

Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Gender	Male
Insulation	Non-Insulated
Length - Overall [x]	18.54 mm
Length - Overall [x]	0.73 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

MU18 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Length - Overall [x]	Length - Overall [x]	Thickness	Thickness	Contact Finish	Stud/Tab Size	Termination	Mounting Type	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Tab Width	Tab Width	Gender	Features	Tab Thickness	Tab Thickness	Width - Outer Edges	Width - Outer Edges	Length - Termination	Length - Termination [x]	Length - Ring Center to Termination	Length - Ring Center to Termination	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]
3M (TC) MU18-4R/SK	22 AWG	17.5 AWG	Circular	0.6 in	15.24 mm	0.03 in	0.76 mm	Tin	4 Stud	Crimp	Free Hanging (In-Line)	Copper ETP	0.25 "	6.35 mm	Non-Insulated
3M (TC) MU18-187DMK	22 AWG	17.5 AWG	Standard	0.64 in	16.26 mm			Tin		Crimp	Free Hanging (In-Line)	Copper			Non-Insulated	4.75 mm	0.187 in	Male	Butted Seam	0.02 "	0.51 mm
3M (TC) MU18-6FK	22 AWG	17.5 AWG	Standard	0.7 in	17.78 mm			Tin	6 Stud	Crimp	Free Hanging (In-Line)	Copper ETP			Non-Insulated				Butted Seam			8.64 mm	0.34 in	6.35 mm	0.25 "	0.29 in	7.37 mm
3M (TC) MU18-8RLX-BOTTLE	22 AWG	17.5 AWG	Circular	0.74 in	18.8 mm	0.03 in	0.76 mm	Tin		Crimp	Free Hanging (In-Line)	Copper ETP	0.31 in		Non-Insulated							7.87 mm						8 Stud
3M (TC) MU18-250DMK	22 AWG	17.5 AWG	Standard	0.73 in	18.54 mm			Tin		Crimp	Free Hanging (In-Line)	Copper ETP			Non-Insulated	6.35 mm	0.25 in	Male	Butted Seam	0.032 in	0.81 mm
3M (TC) MU18-6FBK	22 AWG	17.5 AWG	Standard	0.65 "	16.51 mm			Tin	6 Stud	Crimp	Free Hanging (In-Line)	Copper			Non-Insulated				Butted Seam					6.35 mm	0.25 "				0.25 in	6.35 mm
3M (TC) MU18-6FBHTK	22 AWG	17.5 AWG	Standard	0.65 "	16.51 mm			Nickel	6 Stud	Crimp	Free Hanging (In-Line)	Steel			Non-Insulated				Butted Seam					6.35 mm	0.25 "				0.25 in	6.35 mm
3M (TC) MU18-250DFK	22 AWG	17.5 AWG	Standard	0.66 in	16.76 mm			Tin		Crimp	Free Hanging (In-Line)	Brass			Non-Insulated	6.35 mm	0.25 in	Female	Butted Seam	0.032 in	0.81 mm
3M (TC) MU18-10RX-BOTTLE	22 AWG	17.5 AWG	Circular	0.74 in	18.8 mm	0.03 in	0.76 mm	Tin	10 Stud	Crimp	Free Hanging (In-Line)	Copper ETP	0.31 in		Non-Insulated							7.87 mm
3M (TC) MU18-187DMX-BOTTLE	22 AWG	17.5 AWG	Standard	0.64 in	16.26 mm			Tin		Crimp	Free Hanging (In-Line)	Copper ETP			Non-Insulated	4.75 mm	0.187 in	Male	Butted Seam	0.02 "	0.51 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.47
		10	$ 0.40
		25	$ 0.35
		50	$ 0.32
		100	$ 0.31
		250	$ 0.28
		500	$ 0.27
		1000	$ 0.22
		3000	$ 0.20

Description

General part information

MU18 Series

0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Non-Insulated
