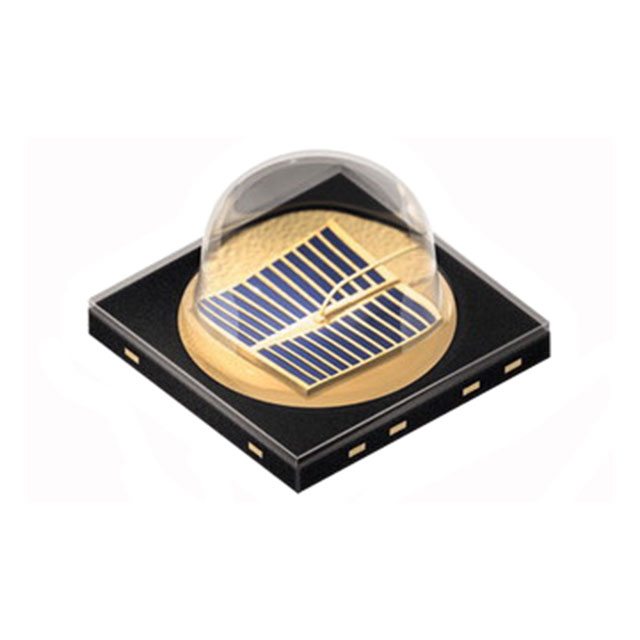

SFH 4725S

Obsolete

ams-OSRAM USA INC.

EMITTER IR 950NM 1A SMD

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

EMITTER IR 950NM 1A SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 4725S

Current - DC Forward (If) (Max)	1 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	3-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	320 mW/sr
Type	Infrared (IR)
Viewing Angle [custom]	90 °
Voltage - Forward (Vf) (Typ)	2.75 V
Wavelength	950 nm

Part	Type	Viewing Angle [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max)	Voltage - Forward (Vf) (Typ)	Orientation	Mounting Type	Wavelength	Package / Case
ams-OSRAM USA INC. SFH 4725S	Infrared (IR)	90 °	-40 °C	125 °C	320 mW/sr	1 A	2.75 V	Top View	Surface Mount	950 nm	3-SMD No Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Infrared (IR) Emitter 950nm 2.75V 1A 320mW/sr @ 1A 90° 3-SMD, No Lead
