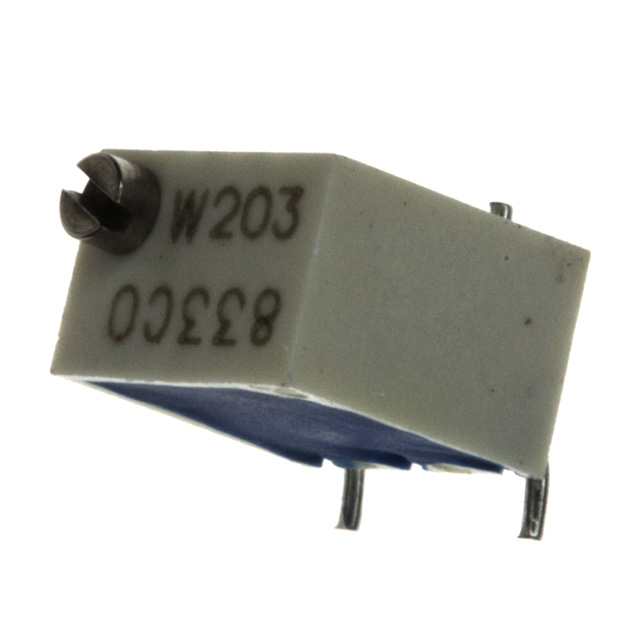

3269W-1-203GLF

Active

Bourns Inc.

RES CERMET TRIMMER 20K OHM 10% 0.25W(1/4W) 12(ELEC)TURNS 1.78MM (6.35 X 6.36 X 8.46MM) GULL WING SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3269W-1-203GLF

Active

Bourns Inc.

RES CERMET TRIMMER 20K OHM 10% 0.25W(1/4W) 12(ELEC)TURNS 1.78MM (6.35 X 6.36 X 8.46MM) GULL WING SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3269W-1-203GLF

Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Number of Turns	12
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	20 kOhms
Resistive Material	Cermet
Size / Dimension [x]	6.35 mm
Size / Dimension [x]	0.25 "
Size / Dimension [y]	0.17 in
Size / Dimension [y]	4.32 mm
Temperature Coefficient	100 ppm/°C
Termination Style	Gull Wing
Tolerance	10 %

3269W Series

Part	Power (Watts)	Power (Watts)	Mounting Type	Adjustment Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Turns	Tolerance	Resistance	Resistive Material	Temperature Coefficient	Termination Style
Bourns Inc. 3269W-1-502G	0.25 W	250 mW	Surface Mount	Top Adjustment	0.17 in	6.35 mm	0.25 "	4.32 mm	12	10 %	5 kOhms	Cermet	100 ppm/°C	Gull Wing
Bourns Inc. 3269W-1-104LF	0.25 W	250 mW	Surface Mount	Top Adjustment	0.17 in	6.35 mm	0.25 "	4.32 mm	12	10 %	100 kOhms	Cermet	100 ppm/°C	Gull Wing
Bourns Inc. 3269W-1-202LF	0.25 W	250 mW	Surface Mount	Top Adjustment	0.17 in	6.35 mm	0.25 "	4.32 mm	12	10 %	2 kOhms	Cermet	100 ppm/°C	Gull Wing
Bourns Inc. 3269W-1-203LF	0.25 W	250 mW	Surface Mount	Top Adjustment	0.17 in	6.35 mm	0.25 "	4.32 mm	12	10 %	20 kOhms	Cermet	100 ppm/°C	Gull Wing
Bourns Inc. 3269W-1-204GLF	0.25 W	250 mW	Surface Mount	Top Adjustment	0.17 in	6.35 mm	0.25 "	4.32 mm	12	10 %	200000 Ohms	Cermet	100 ppm/°C	Gull Wing
Bourns Inc. 3269W-1-203GLF	0.25 W	250 mW	Surface Mount	Top Adjustment	0.17 in	6.35 mm	0.25 "	4.32 mm	12	10 %	20 kOhms	Cermet	100 ppm/°C	Gull Wing
Bourns Inc. 3269W-1-104GLF	0.25 W	250 mW	Surface Mount	Top Adjustment	0.17 in	6.35 mm	0.25 "	4.32 mm	12	10 %	100 kOhms	Cermet	100 ppm/°C	Gull Wing
Bourns Inc. 3269W-1-503LF	0.25 W	250 mW	Surface Mount	Top Adjustment	0.17 in	6.35 mm	0.25 "	4.32 mm	12	10 %	50 kOhms	Cermet	100 ppm/°C	Gull Wing
Bourns Inc. 3269W-1-100	0.25 W	250 mW	Surface Mount	Top Adjustment	0.17 in	6.35 mm	0.25 "	4.32 mm	12	10 %	10 Ohms	Cermet	100 ppm/°C	Gull Wing
Bourns Inc. 3269W-ES2-500	0.25 W	250 mW	Surface Mount	Top Adjustment	0.17 in	6.35 mm	0.25 "	4.32 mm	12	10 %	50 Ohms	Cermet	100 ppm/°C	Gull Wing

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.11
		10	$ 4.10
		25	$ 3.76
		50	$ 3.52
		100	$ 3.29
		250	$ 3.01
	Digi-Reel®	1	$ 5.11
		10	$ 4.10
		25	$ 3.76
		50	$ 3.52
		100	$ 3.29
		250	$ 3.01
	Tape & Reel (TR)	500	$ 2.81
		1000	$ 2.62
		1500	$ 2.52
		2500	$ 2.40
		3500	$ 2.32

Description

General part information

3269W Series

20 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
