RFAAAPC7NJ

Active

BULGIN LIMITED

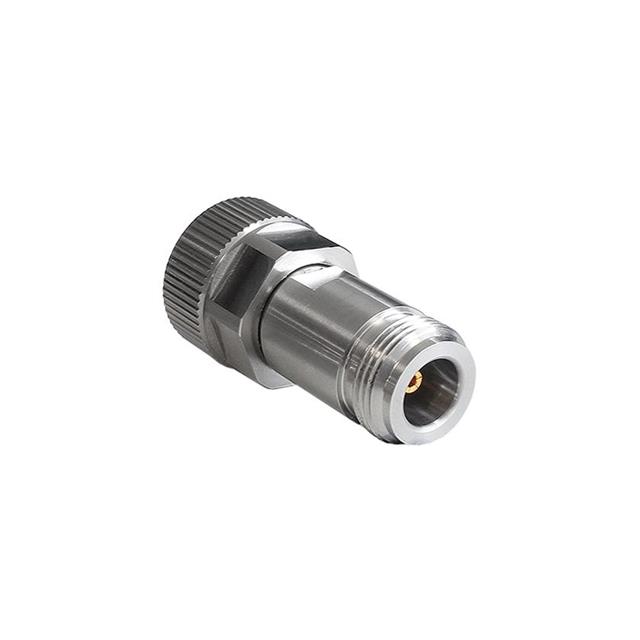

RF / COAXIAL ADAPTER, APC7, JACK, N, JACK, STRAIGHT ADAPTER, 50 OHM

Search across all available documentation for this part.

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, APC7, JACK, N, JACK, STRAIGHT ADAPTER, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	RFAAAPC7NJ

Adapter Series	N to APC-7mm
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Jack, Female Socket, APC-7mm
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Convert From (Adapter End)	Adapter Type	Body Material	Style	Adapter Series	Center Gender	Conversion Type	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Impedance	Dielectric Material	Mounting Type	Frequency - Max [Max]	Convert To (Adapter End)
BULGIN LIMITED RFAAAPC7NJ	Female Socket N Jack	Jack to Jack	Stainless Steel	Straight	N to APC-7mm	Female to Female	Between Series	500	85 °C	-40 °C	Beryllium Copper	50 Ohms	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	18 GHz	APC-7mm Female Socket Jack
BULGIN LIMITED RFAAAPC7NP	N Plug Male Pin	Plug to Jack	Stainless Steel	Straight	N to APC-7mm		Between Series	500	85 °C	-40 °C	Beryllium Copper	50 Ohms	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	18 GHz	APC-7mm Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To APC-7mm, Jack, Female Socket 50 Ohms
