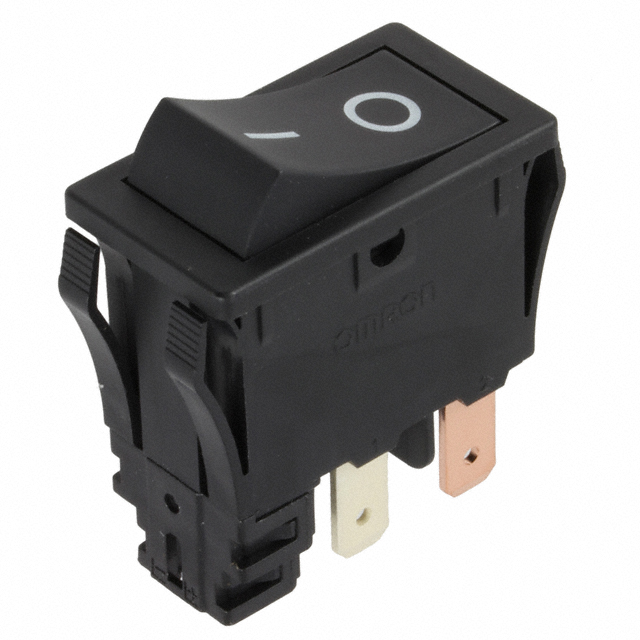

A8GS-D1285
ActiveOmron Electronics Inc-EMC Div
SWITCH ROCKER DPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A8GS-D1285
ActiveOmron Electronics Inc-EMC Div
SWITCH ROCKER DPST 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A8GS-D1285 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus, EN, UL |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Features | Remote Reset Function |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions [x] | 27.7 mm |
| Panel Cutout Dimensions [y] | 15.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.47 | |
| 10 | $ 20.41 | |||
| 25 | $ 19.49 | |||
| 50 | $ 18.46 | |||
| 100 | $ 17.77 | |||
| 250 | $ 16.62 | |||
| 500 | $ 14.19 | |||
Description
General part information
A8GS-D128 Series
Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
