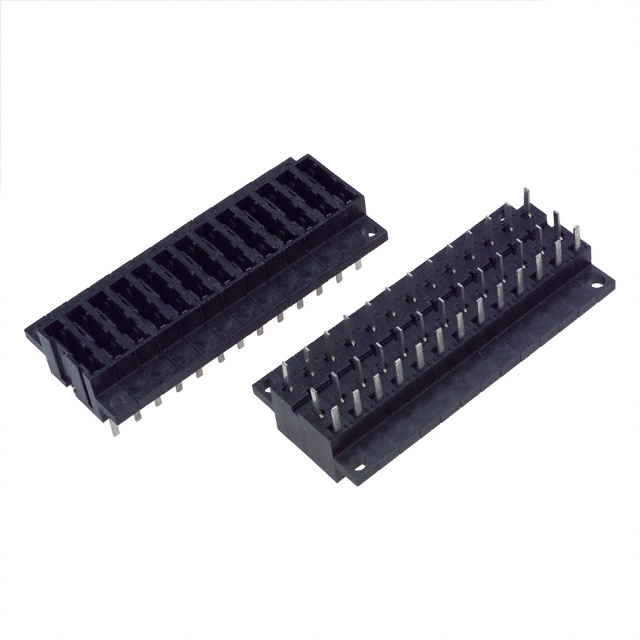

04820013ZXP

Active

Littelfuse/Commercial Vehicle Products

FUSEHOLDER, INDICATING, 13 FUSES, 15 A, 125 VAC, 125 VDC, PIN

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

FUSEHOLDER, INDICATING, 13 FUSES, 15 A, 125 VAC, 125 VDC, PIN

Technical Specifications

Parameters and characteristics for this part

Specification	04820013ZXP

Contact Finish	Tin
Contact Material	Beryllium Copper
Current Rating (Amps)	15 A
For Use With/Related Products	481 Alarm Fuse
Fuse Size [x]	0.665 "
Fuse Size [x]	16.9 mm
Fuse Size [y]	0.315 "
Fuse Size [y]	8 mm
Fuse Size [z]	0.772 "
Fuse Size [z]	19.6 mm
Fuse Type	Blade
Fuseholder Type	Holder
Number of Circuits	13
Termination Style	PC Pin
Voltage	125 V

ACS ALARM HLDR PANEL MT 13 POLE

Part	Fuse Type	Voltage	Contact Finish	Fuseholder Type	For Use With/Related Products	Termination Style	Fuse Size [x]	Fuse Size [z]	Fuse Size [y]	Fuse Size [z]	Fuse Size [x]	Fuse Size [y]	Current Rating (Amps)	Contact Material	Number of Circuits
Littelfuse/Commercial Vehicle Products 04820013ZXP	Blade	125 V	Tin	Holder	481 Alarm Fuse	PC Pin	0.665 "	0.772 "	0.315 "	19.6 mm	16.9 mm	8 mm	15 A	Beryllium Copper	13

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ACS ALARM HLDR PANEL MT 13 POLE
