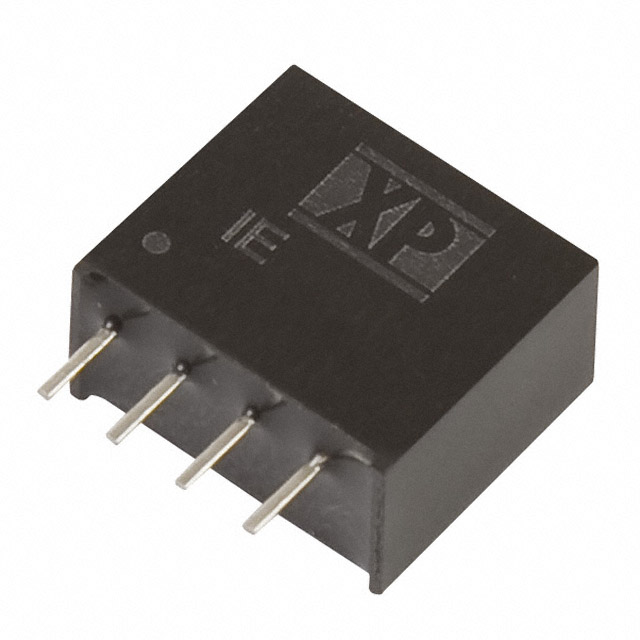

IE1215S

Active

XP POWER

DC DC CONVERTER 15V 1W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 15V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Applications	Voltage - Output 1	Mounting Type	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Efficiency	Voltage - Isolation
XP POWER IE1215S	1	10.8 V	66 mA	85 °C	-40 °C	Isolated Module	ITE (Commercial)	15 V	Through Hole	4-SIP Module	12.7 mm	11.7 mm	6 mm	0.46 in	0.24 "	0.5 in	13.2 V	78 %	1000 V
XP POWER IE1215D	1	10.8 V	66 mA	85 °C	-40 °C	Isolated Module	ITE (Commercial)	15 V	Through Hole	4-DIP Module	6.9 mm	12.7 mm	10.2 mm	0.5 in	0.4 in	0.27 "	13.2 V	78 %	1000 V
XP POWER IE1215SH	1	10.8 V	66 mA	85 °C	-40 °C	Isolated Module	ITE (Commercial)	15 V	Through Hole	4-SIP Module	12.7 mm	11.7 mm	6 mm	0.46 in	0.24 "	0.5 in	13.2 V	78 %	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 66mA 10.8V - 13.2V Input
