C30645EH
ActiveExcelitas Technologies

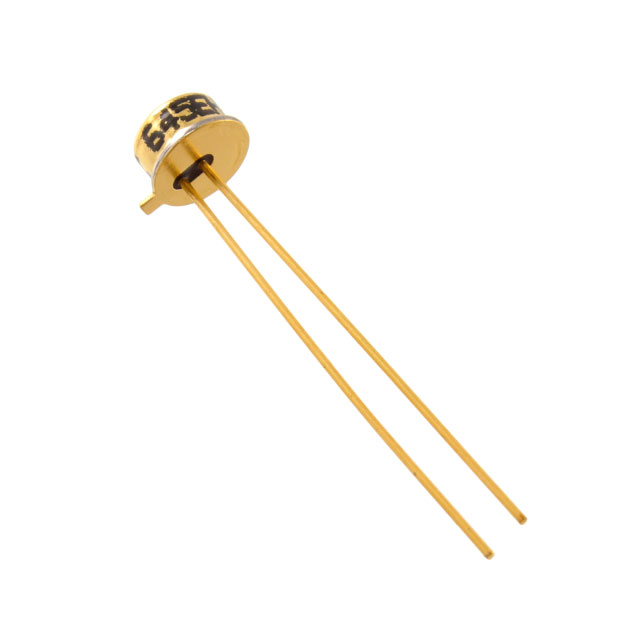

SENSOR PHOTODIODE 1550NM TO18-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C30645EH
ActiveExcelitas Technologies
SENSOR PHOTODIODE 1550NM TO18-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C30645EH |
|---|---|
| Active Area [diameter] | 80 µm |
| Current - Dark (Typ) | 3 nA |
| Diode Type | Avalanche |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | TO-18-2 Metal Can |
| Responsivity @ nm | 9.3 A/W |
| Spectral Range [Max] [custom] | 1700 nm |
| Spectral Range [Min] [custom] | 1100 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 70 V |
| Wavelength | 1550 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 318.15 | |
| 10 | $ 298.63 | |||
Description
General part information
C30645 Series
Photodiode 1550nm TO-18-2 Metal Can
