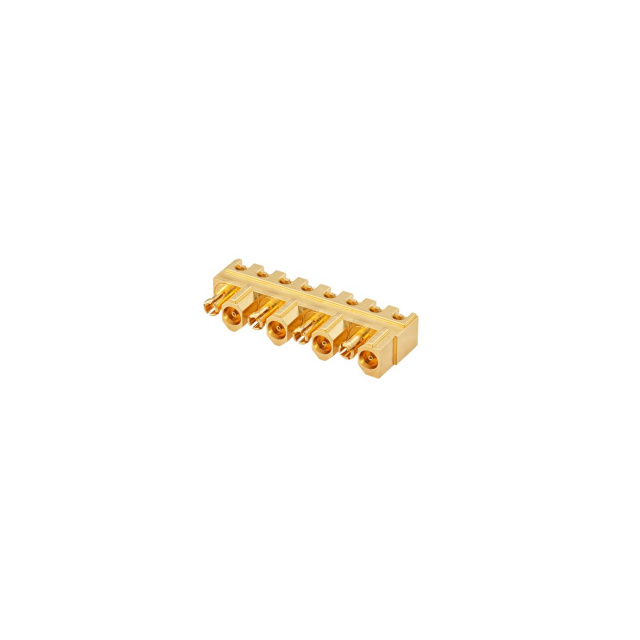

23C25D-40ML5

Active

Rosenberger

MINI COAX MULTIPORT 8 CHANNEL AN

Search across all available documentation for this part.

Active

Rosenberger

MINI COAX MULTIPORT 8 CHANNEL AN

Technical Specifications

Parameters and characteristics for this part

Specification	23C25D-40ML5

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Miniature Coaxial
Connector Type	Plug, Male Pin (4), Jack, Female Socket (4)
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount, Right Angle
Number of Ports	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Body Finish	Contact Termination	Voltage Rating	Shield Termination	Connector Style	Number of Ports	Housing Color	Center Contact Plating	Impedance	Center Contact Material	Connector Type	Dielectric Material	Fastening Type	Mounting Type	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Body Material
Rosenberger 23C25D-40ML5	Gold	Solder	500 V	Solder	Miniature Coaxial	8	Gold	Gold	50 Ohms	Beryllium Copper	Jack Female Socket (4) Plug Male Pin (4)	Polytetrafluoroethylene (PTFE)	Snap-On	Surface Mount Right Angle	500	125 °C	-40 °C	40 GHz	Beryllium Copper Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 169.42

General part information

Miniature Coaxial Connector Jack, Female Socket (4); Plug, Male Pin (4) 50 Ohms Surface Mount, Right Angle Solder
