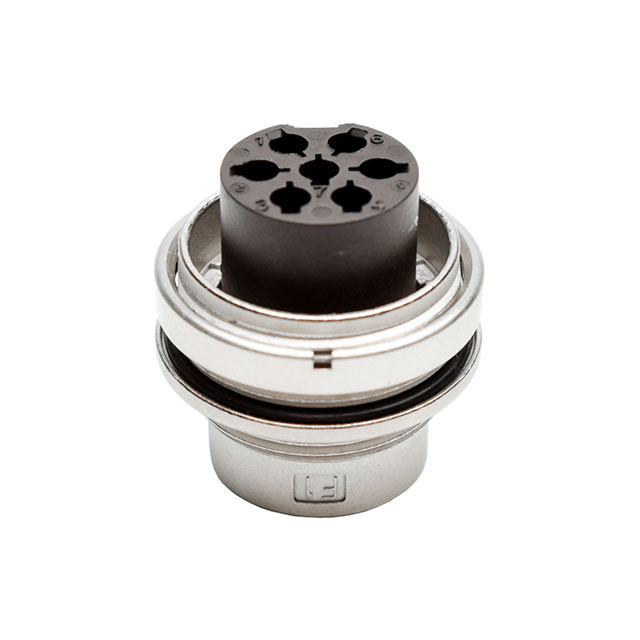

C091 11W007 000 2

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 7POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 7POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11W007 000 2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-7
Shielding	Shielded
Type	For Male Pins

Part	Material Flammability Rating	Contact Type	Contact Shape	Note	Insert Material	Shell Size - Insert	Number of Positions	Connector Type	Contact Size	Orientation	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Ingress Protection	Type	Mounting Feature	Shell Material	Housing Color
Amphenol Tuchel Industrial C091 11W007 000 2	UL94 V-0	Crimp	Circular	Contacts Not Included	Thermoplastic	M16-7	7	Receptacle Housing	1.5 mm	Keyed	Nickel	100 °C	-40 °C	Shielded	IP65 IP67 IP69K	For Male Pins	Bulkhead - Rear Side Nut	Die Cast	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle Housing Panel Mount
