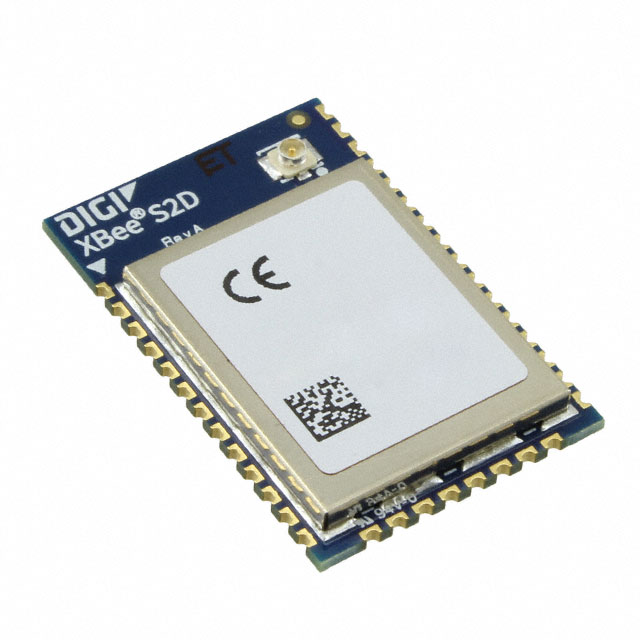

XB24DZ7UIS-004
ObsoleteDigi
RF TXRX MODULE 802.15.4U.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
XB24DZ7UIS-004
ObsoleteDigi
RF TXRX MODULE 802.15.4U.FL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XB24DZ7UIS-004 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 31 mA |
| Current - Transmitting | 45 mA |
| Data Rate | 250 KBd |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 8 dBm |
| Protocol | Zigbee® |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -102 dBm |
| Serial Interfaces | UART, SPI |
| Utilized IC / Part | EM3587 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XB24DZ7 Series
802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
