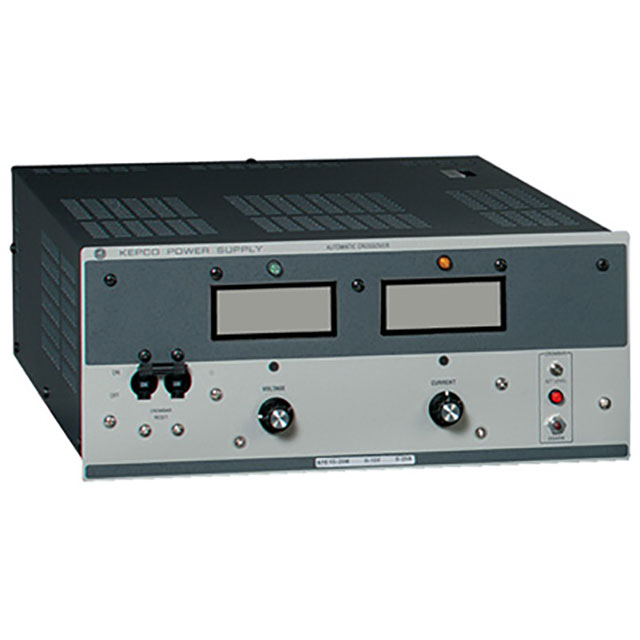

ATE 100-5DM

Active

Kepco and Kepco Power

POWER SUPPLY RACK MNT 500W LCD

Search across all available documentation for this part.

Active

Kepco and Kepco Power

POWER SUPPLY RACK MNT 500W LCD

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output [Min]	Current - Output [Max]	Type	Ripple	Number of Characters	Number of Characters	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Voltage - Output [Max]	Voltage - Output [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Kepco and Kepco Power ATE 100-5DM	0 A	5 A	Rack Mount (AC to DC)	10 mV 30 mV	3.5	2	500 W	435.4 mm	17.142 in	5.22 in	12.531 in	132.6 mm	318.3 mm	Programmable	95 VAC	250 VAC	LCD	100 VDC	0 VDC
Kepco and Kepco Power ATE 100-1DM	0 A	1 A	Rack Mount (AC to DC)	10 mV 30 mV	3.5	2	100 W	17.126 in				4.157 in	5.22 "	Programmable	95 VAC	250 VAC	LCD	100 VDC	0 VDC	132.6 mm	435 mm	105.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4596.55

General part information

0 ~ 100VDC Output Rack Mount (AC to DC) Power Supply LCD 0 ~ 5A Output 500W Features Programmable
