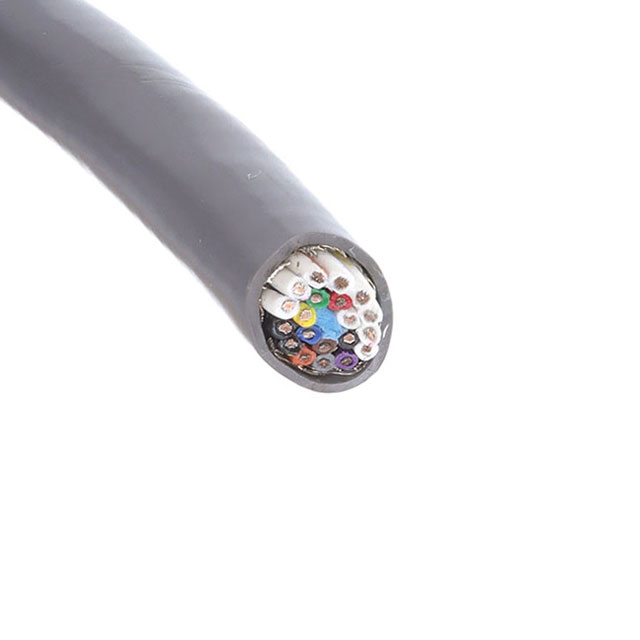

1728 SL001

Active

ALPHA WIRE

CABLE 20COND 20AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 20COND 20AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	1728 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	0.462 in
Jacket (Insulation) Diameter [diameter]	11.73 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	20
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	600 V
Wire Gauge	20 AWG

Part	Conductor Material	Jacket (Insulation) Material	Shield Coverage	Wire Gauge	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Cable Type	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Shield Type	Conductor Insulation	Number of Conductors	Jacket Color	Conductor Strand	Length [x]	Length [x]
ALPHA WIRE 1728 SL001	Copper Tinned	Poly-Vinyl Chloride (PVC)	85 %	20 AWG	Copper Tinned	0.889 mm	0.035 in	600 V	Multi-Conductor	Communication Control	0.462 in	11.73 mm	-20 C	60 °C	1000 ft	304.8 m	Braid	Polyethylene (PE)	20	Slate	26 34 AWG
ALPHA WIRE 1728 SL005	Copper Tinned	Poly-Vinyl Chloride (PVC)	85 %	20 AWG	Copper Tinned	0.889 mm	0.035 in	600 V	Multi-Conductor	Communication Control	0.462 in	11.73 mm	-20 C	60 °C			Braid	Polyethylene (PE)	20	Slate	26 34 AWG	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 19.02

General part information

20 Conductor Multi-Conductor Cable Slate 20 AWG Braid 1000.0' (304.8m)
