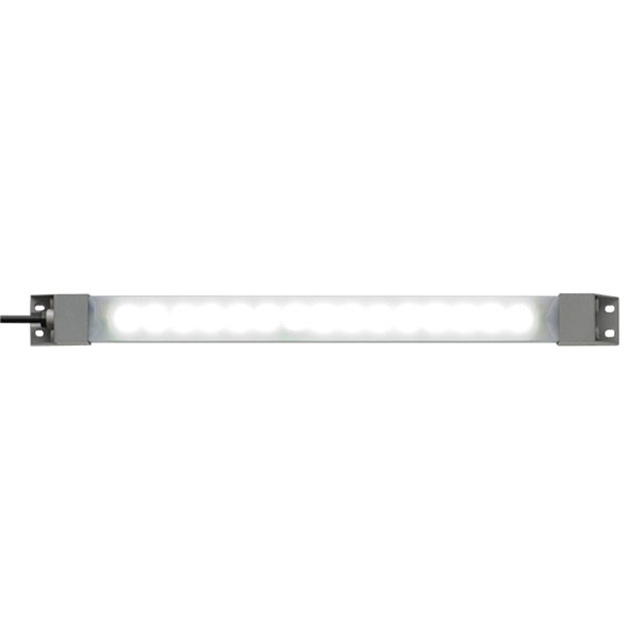

LF1B-NC4P-2THWW2-3M

Obsolete

IDEC

LED BAR 330MM IP65 WHITE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Obsolete

IDEC

LED BAR 330MM IP65 WHITE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	LF1B-NC4P-2THWW2-3M

Approval Agency	cULus, CE
Housing Material	Polycarbonate (PC)
Illumination Color	White, Cool
Ingress Protection	IP65 - Dust Tight, Water Resistant
Length	330 mm
Length [x]	12.99 "
Lens Type	Flat, Diffused
Luminous Flux	1288 lm
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-30 ░C
Power - Rated	4.4 W
Profile (W x H) [x]	1.08 in
Profile (W x H) [x]	27.5 mm
Profile (W x H) [y]	16 mm
Profile (W x H) [y]	0.63 in
Rated Life	40000 Hours
Termination Style	Cable Leads
Voltage - Supply	24 VDC

Part	Rated Life	Length	Length [x]	Voltage - Supply	Illumination Color	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Ingress Protection	Approval Agency	Power - Rated	Luminous Flux	Lens Type	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [x]	Profile (W x H) [y]
IDEC LF1B-NC4P-2THWW2-3M	40000 Hours	330 mm	12.99 "	24 VDC	Cool White	Cable Leads	55 °C	-30 ░C	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	CE cULus	4.4 W	1288 lm	Diffused Flat	16 mm	1.08 in	27.5 mm	0.63 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED BAR 330MM IP65 WHITE ROHS COMPLIANT: YES
