C1AXG-5036M
ActiveCW Industries
IDC CABLE - CSC50G/AE50M/X
Deep-Dive with AI
Search across all available documentation for this part.
C1AXG-5036M
ActiveCW Industries
IDC CABLE - CSC50G/AE50M/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1AXG-5036M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.73 | |
| 10 | $ 15.97 | |||
| 25 | $ 14.45 | |||
| 50 | $ 13.43 | |||
| 100 | $ 12.50 | |||
| 250 | $ 11.40 | |||
| 500 | $ 10.66 | |||
Description
General part information
C1AXG-5 Series

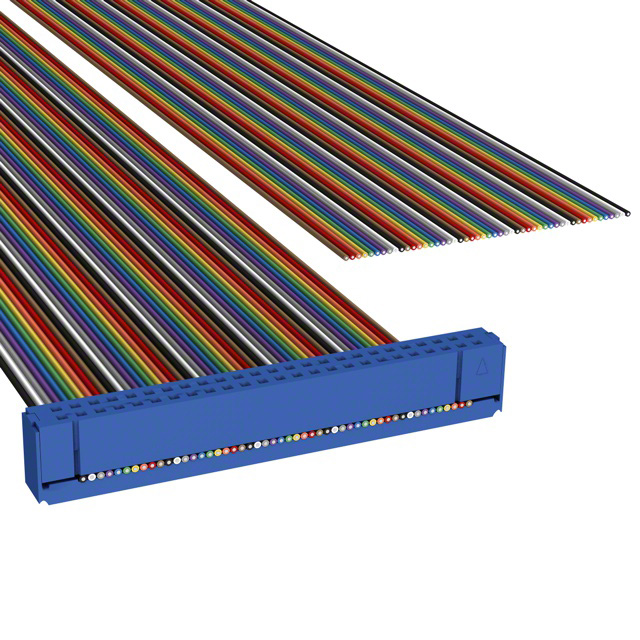

50 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
Documents
Technical documentation and resources
