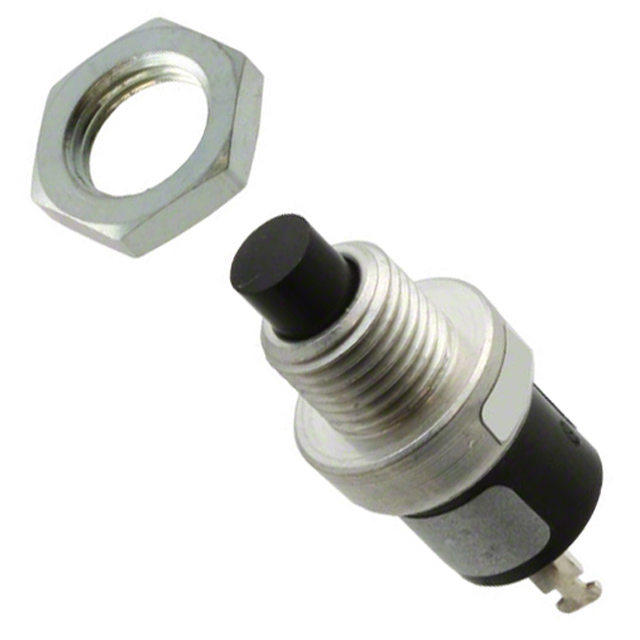

23-4-E
ActiveGrayhill Inc.
SWITCH PUSH SPST-NO 0.25A 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
23-4-E
ActiveGrayhill Inc.
SWITCH PUSH SPST-NO 0.25A 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 23-4-E |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 250 mA |
| Electrical Life | 100000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 115 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 13.51 | |
Description
General part information
23-4 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Rear
