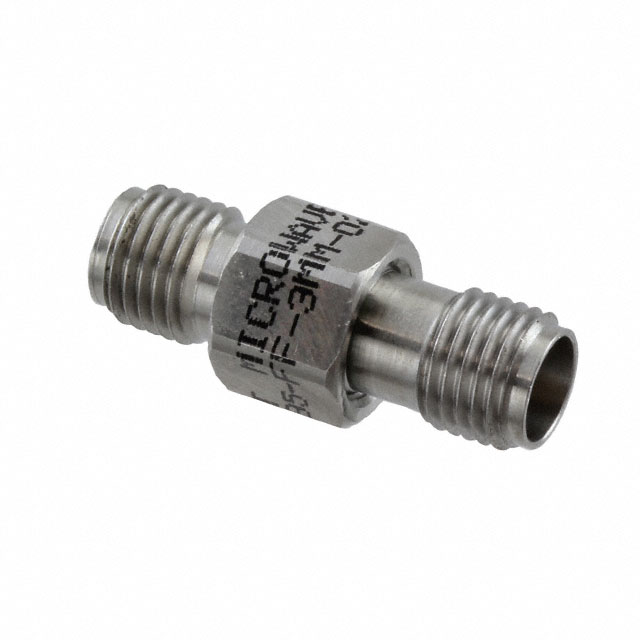

ADT-2735-FF-3MM-02
ActiveCinch Connectivity Solutions Midwest Microwave
CONN ADAPT JACK-JACK 3.5MM 50OHM
Deep-Dive with AI
Search across all available documentation for this part.
ADT-2735-FF-3MM-02
ActiveCinch Connectivity Solutions Midwest Microwave
CONN ADAPT JACK-JACK 3.5MM 50OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADT-2735-FF-3MM-02 |
|---|---|
| Adapter Series [Max] | 3.5 mm |
| Adapter Series [Min] | 3.5 mm |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 3.5mm Jack, Female Socket |
| Convert To (Adapter End) | 3.5mm Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 26.5 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 94.54 | |
| 10 | $ 86.75 | |||
| 25 | $ 83.42 | |||
| 50 | $ 80.64 | |||
| 100 | $ 76.19 | |||
Description
General part information
ADT-2735 Series
Adapter Coaxial Connector 3.5mm Jack, Female Socket To 3.5mm Jack, Female Socket 50 Ohms
