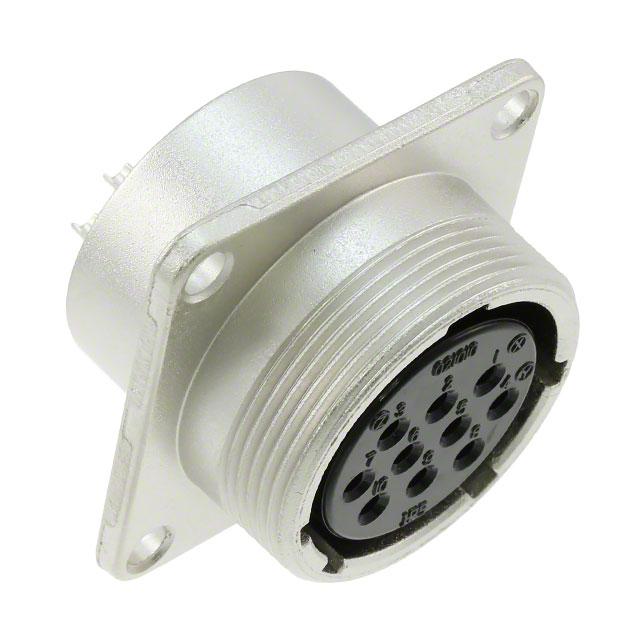

JR21RK-10S

LTB

Hirose Electric USA, Inc.

CONN RCPT FMALE 10P SOLDER CUP

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN RCPT FMALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JR21RK-10S

Cable Opening [custom]	23.9 mm
Cable Opening [custom]	0.941 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	21
Shielding	Unshielded
Voltage Rating	350 V, 250 VAC

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Number of Positions	Primary Material	Current Rating (Amps)	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Shielding	Insert Material	Shell Material	Material Flammability Rating	Connector Type	Shell Finish	Orientation	Contact Material	Voltage Rating	Color	Shell Size - Insert
Hirose Electric USA, Inc. JR21RK-10S	78.7 µin	2 µm	-25 °C	85 °C	Flange	10	Metal	10 A	Silver	23.9 mm	0.941 in	Unshielded	Phenol Formaldehyde (PF)	Aluminum Alloy	UL94 V-0	Receptacle Female Sockets	Nickel	Keyed	Copper Alloy	250 VAC 350 V	Silver	21

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.57

General part information

10 Position Circular Connector Receptacle, Female Sockets Solder Cup
