Q-030040003003i

Active

Amphenol Custom Cable

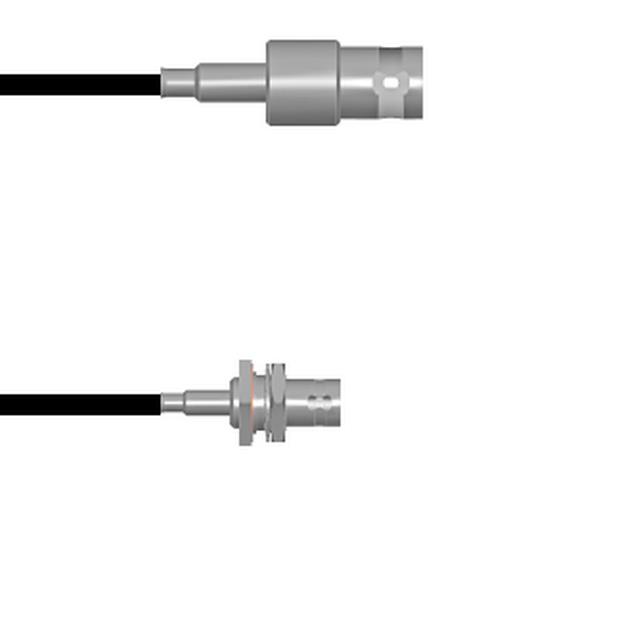

CBL ASSY BNC JACK TO JACK 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-030040003003i

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO JACK 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-030040003003i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-030040 Series

Part	Style	2nd Connector Mounting Type	1st Contact Gender	Frequency - Max [Max]	Overall Impedance	Color	1st Connector Mounting Type	2nd Contact Gender	Features	1st Connector Mounting Feature	Cable Type	2nd Connector	Length [x]	Length [x]	1st Connector	Length	Length	Length
Amphenol Custom Cable Q-030040003.25M	BNC to BNC	Free Hanging (In-Line)	Female	4 GHz	50 Ohms	Black	Panel Mount	Female	Shielded	Bulkhead - Front Side Nut	RG-174	BNC Jack	9.843 "	250 mm	BNC Jack
Amphenol Custom Cable Q-030040005012i	BNC to BNC	Free Hanging (In-Line)	Female	4 GHz	50 Ohms	Copper	Panel Mount	Female	Shielded	Bulkhead - Front Side Nut	RG-316	BNC Jack			BNC Jack	12 "	304.8 mm
Amphenol Custom Cable Q-030040003108i	BNC to BNC	Free Hanging (In-Line)	Female	4 GHz	50 Ohms	Black	Panel Mount	Female	Shielded	Bulkhead - Front Side Nut	RG-174	BNC Jack			BNC Jack	108 in	2.7 m	9 ft
Amphenol Custom Cable Q-030040005009i	BNC to BNC	Free Hanging (In-Line)	Female	4 GHz	50 Ohms	Copper	Panel Mount	Female	Shielded	Bulkhead - Front Side Nut	RG-316	BNC Jack			BNC Jack	9 "	228.6 mm
Amphenol Custom Cable Q-030040003084i	BNC to BNC	Free Hanging (In-Line)	Female	4 GHz	50 Ohms	Black	Panel Mount	Female	Shielded	Bulkhead - Front Side Nut	RG-174	BNC Jack			BNC Jack	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-030040005060i	BNC to BNC	Free Hanging (In-Line)	Female	4 GHz	50 Ohms	Copper	Panel Mount	Female	Shielded	Bulkhead - Front Side Nut	RG-316	BNC Jack			BNC Jack	5 '	1.5 m	5 ft
Amphenol Custom Cable Q-030040003048i	BNC to BNC	Free Hanging (In-Line)	Female	4 GHz	50 Ohms	Black	Panel Mount	Female	Shielded	Bulkhead - Front Side Nut	RG-174	BNC Jack			BNC Jack	48 in	1200 mm	4 ft
Amphenol Custom Cable Q-030040003003i	BNC to BNC	Free Hanging (In-Line)	Female	4 GHz	50 Ohms	Black	Panel Mount	Female	Shielded	Bulkhead - Front Side Nut	RG-174	BNC Jack			BNC Jack	3 in	76.2 mm
Amphenol Custom Cable Q-030040003012i	BNC to BNC	Free Hanging (In-Line)	Female	4 GHz	50 Ohms	Black	Panel Mount	Female	Shielded	Bulkhead - Front Side Nut	RG-174	BNC Jack			BNC Jack	12 "	304.8 mm
Amphenol Custom Cable Q-0300400051.5M	BNC to BNC	Free Hanging (In-Line)	Female	4 GHz	50 Ohms	Copper	Panel Mount	Female	Shielded	Bulkhead - Front Side Nut	RG-316	BNC Jack			BNC Jack	59.1 in	1.5 m	4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 54.20
		25	$ 53.14
		50	$ 52.08
		100	$ 51.02
		250	$ 49.96

Description

General part information

Q-030040 Series

Cable Assembly Coaxial BNC to BNC RG-174 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
