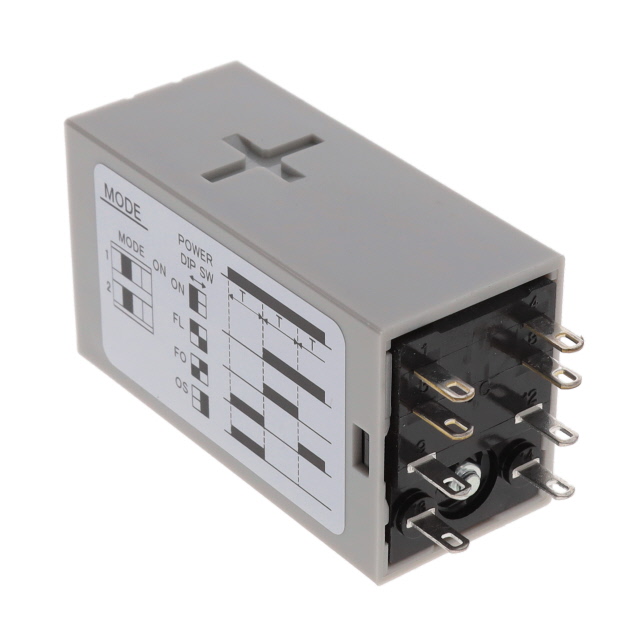

S1DXM-M2C30M-DC24V

Obsolete

Panasonic Industrial Automation Sales

RELAY TIME DELAY 30MIN 7A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

S1DXM-M2C30M-DC24V

Obsolete

Panasonic Industrial Automation Sales

RELAY TIME DELAY 30MIN 7A 250V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S1DXM-M2C30M-DC24V

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	7 A, 250 VAC
Delay Time [Max]	30 Min
Delay Time [Min]	0.2 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	24 VDC

S1DXM Series

Part	Termination Style	Relay Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Delay Time [Min]	Delay Time [Max]	Mounting Type	Circuit	Timing Initiate Method	Contact Rating @ Voltage	Timing Adjustment Method	Function	Voltage - Supply
Panasonic Industrial Automation Sales S1DXMA2C30MAC240V	Plug In	Mechanical Relay	220 VAC	240 VAC	0.2 Sec	30 Min	Socketable	DPDT (2 Form C)	Input Voltage	7 A 250 VAC	Hand Dial	On-Delay
Panasonic Industrial Automation Sales S1DXM-A2C60M-AC220V	Plug In	Mechanical Relay	200 VAC	220 VAC	0.5 Sec	60 Min	Socketable	DPDT (2 Form C)	Input Voltage	7 A 250 VAC	Hand Dial	On-Delay
Panasonic Industrial Automation Sales S1DXM-M2C30M-DC24V	Plug In	Mechanical Relay			0.2 Sec	30 Min	Socketable	DPDT (2 Form C)	Input Voltage	7 A 250 VAC	Hand Dial	Programmable (Multi-Function)	24 VDC
Panasonic Industrial Automation Sales S1DXM-A2C60M-DC24V	Plug In	Mechanical Relay			0.5 Sec	60 Min	Socketable	DPDT (2 Form C)	Input Voltage	7 A 250 VAC	Hand Dial	On-Delay	24 VDC
Panasonic Industrial Automation Sales S1DXMM2C10MAC120V	Plug In	Mechanical Relay	100 VAC	120 VAC	0.05 Sec	10 Min	Socketable	DPDT (2 Form C)	Input Voltage	7 A 250 VAC	Hand Dial	Programmable (Multi-Function)
Panasonic Industrial Automation Sales S1DXMA2C10HAC240V	Plug In	Mechanical Relay	220 VAC	240 VAC	0.05 Min	10 Hrs	Socketable	DPDT (2 Form C)	Input Voltage	7 A 250 VAC	Hand Dial	On-Delay
Panasonic Industrial Automation Sales S1DXM-A2C10H-DC12V	Plug In	Mechanical Relay			0.05 Min	10 Hrs	Socketable	DPDT (2 Form C)	Input Voltage	7 A 250 VAC	Hand Dial	On-Delay	12 VDC
Panasonic Industrial Automation Sales S1DXM-M2C60M-AC240V	Plug In	Mechanical Relay	220 VAC	240 VAC	0.5 Sec	60 Min	Socketable	DPDT (2 Form C)	Input Voltage	7 A 250 VAC	Hand Dial	Programmable (Multi-Function)
Panasonic Industrial Automation Sales S1DXMM2C10MAC240V	Plug In	Mechanical Relay	220 VAC	240 VAC	0.05 Sec	10 Min	Socketable	DPDT (2 Form C)	Input Voltage	7 A 250 VAC	Hand Dial	Programmable (Multi-Function)
Panasonic Industrial Automation Sales S1DXM-M2C10M-AC220V	Plug In	Mechanical Relay	200 VAC	220 VAC	0.05 Sec	10 Min	Socketable	DPDT (2 Form C)	Input Voltage	7 A 250 VAC	Hand Dial	Programmable (Multi-Function)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

S1DXM Series

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.2 Sec ~ 30 Min Delay 7A @ 250VAC Socketable
