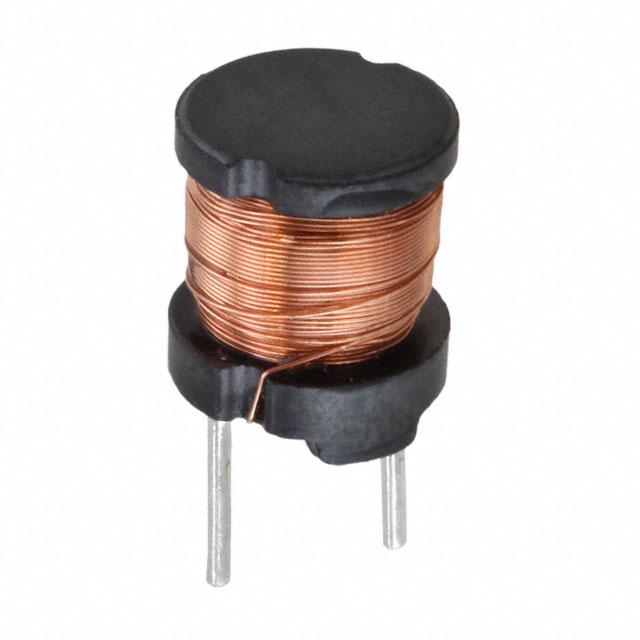

RCH895NP-822K

Active

Sumida America Components Inc.

FIXED IND 8.2MH 75MA 15.3 OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RCH895NP-822K

Active

Sumida America Components Inc.

FIXED IND 8.2MH 75MA 15.3 OHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RCH895NP-822K

Current - Saturation (Isat)	100 mA
Current Rating (Amps)	75 mA
DC Resistance (DCR) [Max]	15.3 Ohm
Height - Seated (Max) [Max]	9.5 mm
Height - Seated (Max) [Max]	0.374 in
Inductance	8.2 mH
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Vertical Cylinder (Open)
Shielding	Unshielded
Size / Dimension [diameter]	7.8 mm
Size / Dimension [diameter]	0.307 in
Tolerance	10 %
Type	Wirewound, Drum Core

RCH895NP Series

Part	Type	Inductance	DC Resistance (DCR) [Max]	Shielding	Mounting Type	Package / Case	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Current - Saturation (Isat)	Current Rating (Amps)	Material - Core	DC Resistance (DCR)	Inductance Frequency - Test
Sumida America Components Inc. RCH895NP-221K	Drum Core Wirewound	220 µH	380 mOhm	Unshielded	Through Hole	Radial Vertical Cylinder (Open)	10 %	100 °C	-40 °C	9.5 mm	0.374 in	7.8 mm	0.307 in	640 mA	0.5 A	Ferrite
Sumida America Components Inc. RCH895NP-151K	Drum Core Wirewound	150 µH		Unshielded	Through Hole	Radial Vertical Cylinder (Open)	10 %	100 °C	-40 °C	9.5 mm	0.374 in	7.8 mm	0.307 in	740 mA	610 mA	Ferrite	270 mOhm
Sumida America Components Inc. RCH895NP-333K	Drum Core Wirewound	33 mH	64.2 Ohm	Unshielded	Through Hole	Radial Vertical Cylinder (Open)	10 %	100 °C	-40 °C	9.5 mm	0.374 in	7.8 mm	0.307 in	48 mA	0.037 A	Ferrite
Sumida America Components Inc. RCH895NP-822K	Drum Core Wirewound	8.2 mH	15.3 Ohm	Unshielded	Through Hole	Radial Vertical Cylinder (Open)	10 %	100 °C	-40 °C	9.5 mm	0.374 in	7.8 mm	0.307 in	100 mA	75 mA	Ferrite
Sumida America Components Inc. RCH895NP-123K	Drum Core Wirewound	12 mH	25 Ohm	Unshielded	Through Hole	Radial Vertical Cylinder (Open)	10 %	100 °C	-40 °C	9.5 mm	0.374 in	7.8 mm	0.307 in	73 mA	59 mA	Ferrite
Sumida America Components Inc. RCH895NP-150K	Drum Core Wirewound	15 µH		Unshielded	Through Hole	Radial Vertical Cylinder (Open)	10 %	100 °C	-40 °C	9.5 mm	0.374 in	7.8 mm	0.307 in	2.1 A	1.8 A	Ferrite	50 mOhm	2.52 MHz
Sumida America Components Inc. RCH895NP-471K	Drum Core Wirewound		890 mOhm	Unshielded	Through Hole	Radial Vertical Cylinder (Open)	10 %	100 °C	-40 °C	9.5 mm	0.374 in	7.8 mm	0.307 in	430 mA	320 mA	Ferrite
Sumida America Components Inc. RCH895NP-122K	Drum Core Wirewound	1.2 mH	2.1 Ohm	Unshielded	Through Hole	Radial Vertical Cylinder (Open)	10 %	100 °C	-40 °C	9.5 mm	0.374 in	7.8 mm	0.307 in	270 mA	0.21 A	Ferrite
Sumida America Components Inc. RCH895NP-101K	Drum Core Wirewound	100 µH	190 mOhm	Unshielded	Through Hole	Radial Vertical Cylinder (Open)	10 %	100 °C	-40 °C	9.5 mm	0.374 in	7.8 mm	0.307 in	900 mA	0.72 A	Ferrite
Sumida America Components Inc. RCH895NP-102K	Drum Core Wirewound	1 mH		Unshielded	Through Hole	Radial Vertical Cylinder (Open)	10 %	100 °C	-40 °C	9.5 mm	0.374 in	7.8 mm	0.307 in		0.22 A	Ferrite	1.84 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 0.34

Description

General part information

RCH895NP Series

8.2 mH Unshielded Drum Core, Wirewound Inductor 75 mA 15.3Ohm Max Radial, Vertical Cylinder (Open)
