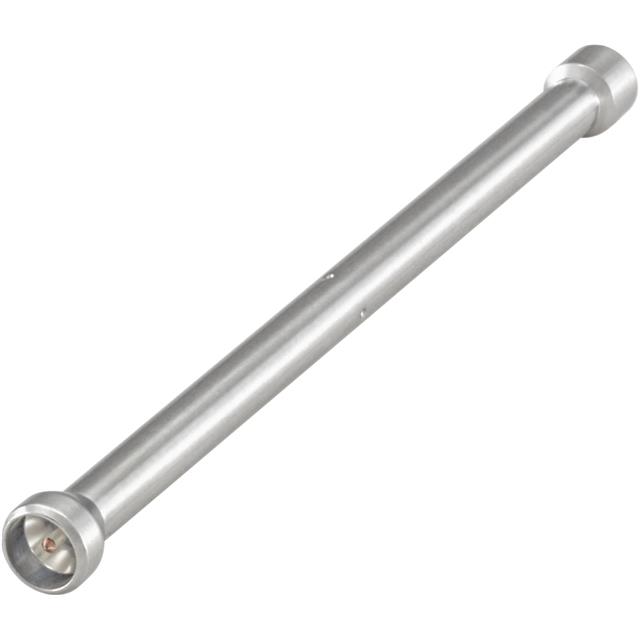

EBCS102-S15N1

Active

Rosenberger

COAX ADAPT EBC TO EBC

Search across all available documentation for this part.

Active

Rosenberger

COAX ADAPT EBC TO EBC

Technical Specifications

Parameters and characteristics for this part

Specification	EBCS102-S15N1

Adapter Series	EBC to EBC
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Copper Alloy
Center Contact Plating	Silver
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	EBC Jack, Male Pin
Convert To (Adapter End)	EBC Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	50
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Fastening Type	Conversion Type	Mating Cycles	Center Contact Plating	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Frequency - Max [Max]	Impedance	Mounting Type	Adapter Series	Adapter Type	Body Finish	Body Material	Convert From (Adapter End)	Center Contact Material	Center Gender	Style
Rosenberger EBCS102-S15N1	Snap-On	Same Series	50	Silver	EBC Jack Male Pin	105 ░C	-55 °C	Polytetrafluoroethylene (PTFE)	6000 MHz	50 Ohms	Free Hanging (In-Line)	EBC to EBC	Jack to Jack	White Bronze	Brass	EBC Jack Male Pin	Copper Alloy	Male to Male	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.82

General part information

Adapter Coaxial Connector EBC Jack, Male Pin To EBC Jack, Male Pin 50 Ohms
