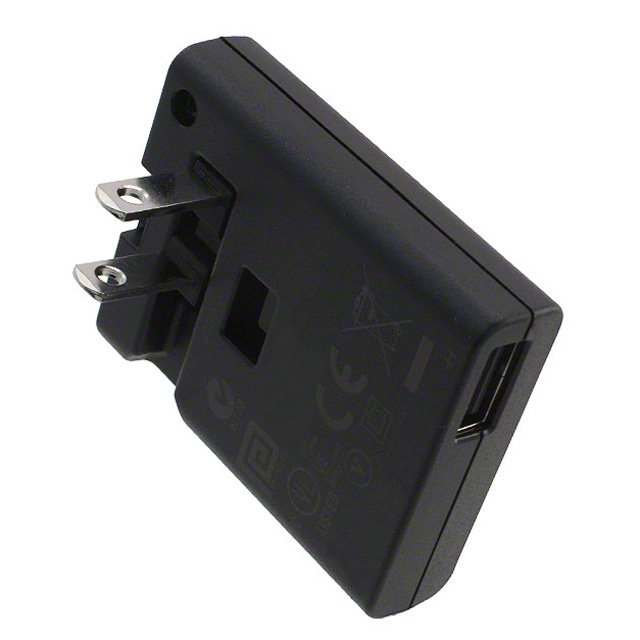

PSA10F-050Q

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSA10F-050Q

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSA10F-050Q

Applications	ITE (Commercial)
Approval Agency	cULus, CE
Current - Output (Max) [Max]	2 A
Efficiency	Level VI, CoC Tier 1
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P, Multi-Blade
Input Type	Multi-Blade, Fixed Blade
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	10 W
Region Utilized	North America
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.36 in
Size / Dimension [y]	1.85 "
Size / Dimension [y]	47 mm
Size / Dimension [z]	0.59 in
Size / Dimension [z]	15 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	38.56 g
Weight	0.085 lb

PSA10F Series

Part	Operating Temperature [Max]	Form	Region Utilized	Power (Watts)	Weight	Weight	Current - Output (Max) [Max]	Efficiency	Input Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output	Input Connector	Applications	No Load Power Consumption [Max]	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Polarization	Standard Number	No Load Power Consumption	Output Connector [diameter]	Output Connector [x]	Output Connector
Phihong USA PSA10F-050Q	40 °C	Wall Mount (Class II)	North America	10 W	38.56 g	0.085 lb	2 A	CoC Tier 1 Level VI	Fixed Blade Multi-Blade	60 mm	1.85 "	2.36 in	0.59 in	15 mm	47 mm	5 V	NEMA 1-15P Multi-Blade	ITE (Commercial)	150 mW	CE cULus	90 VAC	264 VAC
Phihong USA PSA10F-050(P)-R	40 °C	Wall Mount (Class II)	North America	10 W	38.56 g	0.085 lb	2 A	CoC Tier 1 Level VI	Fixed Blade Multi-Blade	60 mm	1.85 "	2.36 in	0.59 in	15 mm	47 mm	5 V	NEMA 1-15P Multi-Blade	ITE (Commercial)		AS/NZS cULus IEC PSE	90 VAC	264 VAC	1 m	39.4 "	Positive Center	55022 60950-1 62368-1 CNS13438 CNS14336-1 CNS15663	100 mW	2.1 mm 5.5 mm	9.5 mm	Barrel Plug
Phihong USA PSA10FC-050Q	40 °C	Wall Mount (Class II)	International	10 W	38.56 g	0.085 lb	2 A	CoC Tier 1 Level VI	Fixed Blade Multi-Blade	60 mm	1.85 "	2.36 in	0.59 in	15 mm	47 mm	5 V	NEMA 1-15P Multi-Blade	ITE (Commercial)	150 mW	CCC CE cULus	90 VAC	264 VAC
Phihong USA PSA10F-050Q(S)	40 °C	Wall Mount (Class II)	North America	10 W	38.56 g	0.085 lb	2 A	CoC Tier 1 Level VI	Fixed Blade Multi-Blade	60 mm	1.85 "	2.36 in	0.59 in	15 mm	47 mm	5 V	NEMA 1-15P Multi-Blade	ITE (Commercial)	150 mW	CE cULus	90 VAC	264 VAC
Phihong USA PSA10F-050-R	40 °C	Wall Mount (Class II)	North America	10 W	38.56 g	0.085 lb	2 A	CoC Tier 1 Level VI	Fixed Blade Multi-Blade	60 mm	1.85 "	2.36 in	0.59 in	15 mm	47 mm	5 V	NEMA 1-15P Multi-Blade	ITE (Commercial)	150 mW	AS/NZS cULus IEC PSE	90 VAC	264 VAC				55022 60950-1 62368-1 CNS13438 CNS14336-1 CNS15663				USB Micro

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.77
		10	$ 9.38
		25	$ 9.00
		50	$ 8.64
		100	$ 8.30
		250	$ 7.97
		500	$ 7.64
		1000	$ 7.32

Description

General part information

PSA10F Series

5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade, Multi-Blade (Sold Separately) Input
