PVU414

Obsolete

Infineon Technologies

SSR RELAY SPST-NO 140MA 0-400V

Search across all available documentation for this part.

Obsolete

Infineon Technologies

SSR RELAY SPST-NO 140MA 0-400V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	On-State Resistance (Max) [Max]	Termination Style	Load Current	Package / Case	Package / Case	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input	Supplier Device Package	Output Type	Approval Agency	Package / Case	Circuit
Infineon Technologies PVG612	Through Hole	500 mOhm	PC Pin	1 A	6-DIP	0.3 in	7.62 mm	0 V	60 V	85 °C	-40 °C	1.2 VDC	6-DIP	AC DC	UL
Infineon Technologies PVU414	Through Hole	27 Ohms	PC Pin	140 mA	6-DIP	0.3 in	7.62 mm			85 °C	-40 °C	1.2 VDC	6-DIP	AC DC	UL
Infineon Technologies PVT322	Through Hole	10 Ohms	PC Pin	170 mA	8-DIP		0.3 in	0 V	250 V	85 °C	-40 °C	1.2 VDC	8-DIP	AC DC	UL	7.62 mm	SPST-NO (1 Form A) x 2
Infineon Technologies PVT442	Through Hole		PC Pin	170 mA	6-DIP	0.3 in	7.62 mm			85 °C	-40 °C	1.2 VDC	6-DIP	AC DC	UL		SPST-NC (1 Form B)
Infineon Technologies 63-9019
Infineon Technologies PVT422	Through Hole	35 Ohm	PC Pin	120 mA	8-DIP		0.3 in			85 °C	-40 °C	1.2 VDC	8-DIP	AC DC	UL	7.62 mm	SPST-NO (1 Form A) x 2
Infineon Technologies 63-8035
Infineon Technologies 63-8028
Infineon Technologies PVT412	Through Hole	27 Ohms	PC Pin	140 mA	6-DIP	0.3 in	7.62 mm			85 °C	-40 °C	1.2 VDC	6-DIP	AC DC	UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

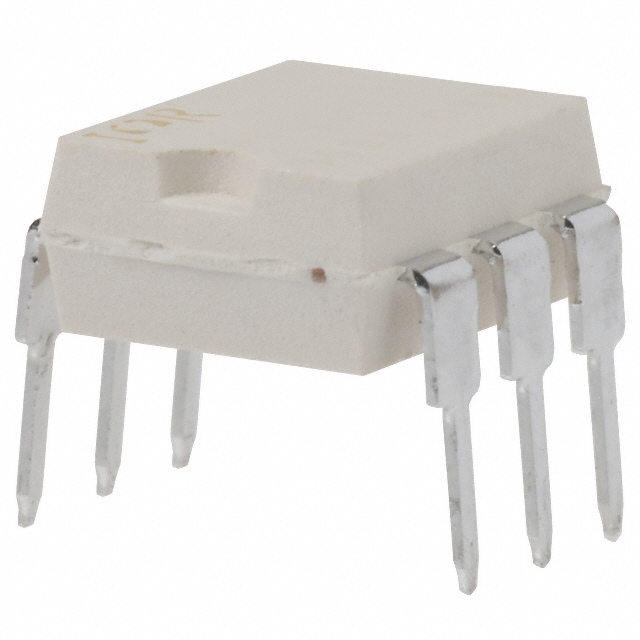

Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)

Technical documentation and resources
