MVU14-6FB/SX-BOTTLE

Obsolete

3M (TC)

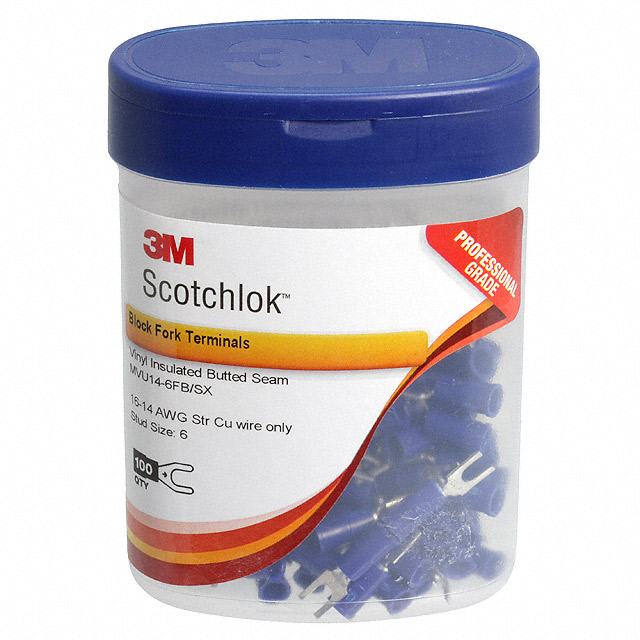

CONN SPADE TERM 14-16AWG 6 100PC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MVU14-6FB/SX-BOTTLE

Color	Blue
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Insulation	Insulated
Length - Overall [x]	21.59 mm
Length - Overall [x]	0.85 "
Length - Ring Center to Termination [x]	0.25 in
Length - Ring Center to Termination [x]	6.35 mm
Length - Termination [x]	0.45 in
Length - Termination [x]	11.43 mm
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Standard
Termination	Crimp
Width - Outer Edges [y]	0.25 "
Width - Outer Edges [y]	6.35 mm

MVU14 Series

Part	Terminal Type	Mounting Type	Contact Material	Features	Stud/Tab Size	Length - Termination [x]	Length - Termination [x]	Insulation	Length - Overall [x]	Length - Overall [x]	Contact Finish	Termination	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Material - Insulation	Color	Number of Wire Entries	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Gender	Length - Overall	Length - Overall	Stud/Tab Size	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges	Width - Outer Edges	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Insulation Diameter	Insulation Diameter [diameter]
3M (TC) MVU14-6FBK	Standard	Free Hanging (In-Line)	Copper ETP	Butted Seam	6 Stud	0.45 in	11.43 mm	Insulated	21.59 mm	0.85 "	Tin	Crimp	0.25 in	6.35 mm	Vinyl	Blue
3M (TC) MVU14BCK	Butt Splice Individual Openings Inline							Fully Insulated				Crimp				Blue	2
3M (TC) MVU14-250DMFK	Stacked	Free Hanging (In-Line)	Brass	Butted Seam				Non-Mating End Insulated	22.1 mm	0.87 in	Tin	Crimp				Blue		6.35 mm	0.25 in	0.032 in	0.81 mm	Female Male
3M (TC) MVU14-8FK	Standard	Free Hanging (In-Line)	Copper ETP	Butted Seam		0.45 in	11.43 mm	Insulated			Tin	Crimp			Vinyl	Blue							0.9 in	22.86 mm	8 Stud	0.29 in	7.37 mm	8.64 mm	0.34 in
3M (TC) MVU14-8R/SK	Circular	Free Hanging (In-Line)	Copper ETP					Insulated	20.32 mm	0.8 in	Tin	Crimp			Vinyl	Blue									8 Stud					0.25 "	6.35 mm	0.03 in	0.76 mm
3M (TC) MVU14-10FBK	Standard	Free Hanging (In-Line)	Copper ETP	Butted Seam	10 Stud	0.45 in	11.43 mm	Insulated	21.59 mm	0.85 "	Tin	Crimp	0.25 in	6.35 mm	Vinyl	Blue
3M (TC) MVU14-6FB/SX-BOTTLE	Standard	Free Hanging (In-Line)	Copper ETP	Butted Seam	6 Stud	0.45 in	11.43 mm	Insulated	21.59 mm	0.85 "	Tin	Crimp	0.25 in	6.35 mm	Vinyl	Blue														0.25 "	6.35 mm
3M (TC) MVU14-250DFX	Standard	Free Hanging (In-Line)	Brass	Butted Seam				Non-Mating End Insulated	22.1 mm	0.87 in	Tin	Crimp				Blue		6.35 mm	0.25 in	0.032 in	0.81 mm	Female												3.68 mm	0.145 "
3M (TC) MVU14-250DFK	Standard	Free Hanging (In-Line)	Brass	Butted Seam				Non-Mating End Insulated	22.1 mm	0.87 in	Tin	Crimp				Blue		6.35 mm	0.25 in	0.032 in	0.81 mm	Female												3.68 mm	0.145 "
3M (TC) MVU14-10R/LK	Circular	Free Hanging (In-Line)	Copper ETP	Butted Seam	10 Stud			Insulated		0.93 in	Tin	Crimp			Vinyl	Blue								23.62 mm				7.87 mm		0.31 in		0.03 in	0.76 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MVU14 Series

Blue 6 Stud Spade Terminal Connector Crimp 14-16 AWG
