0395021002

Active

Molex

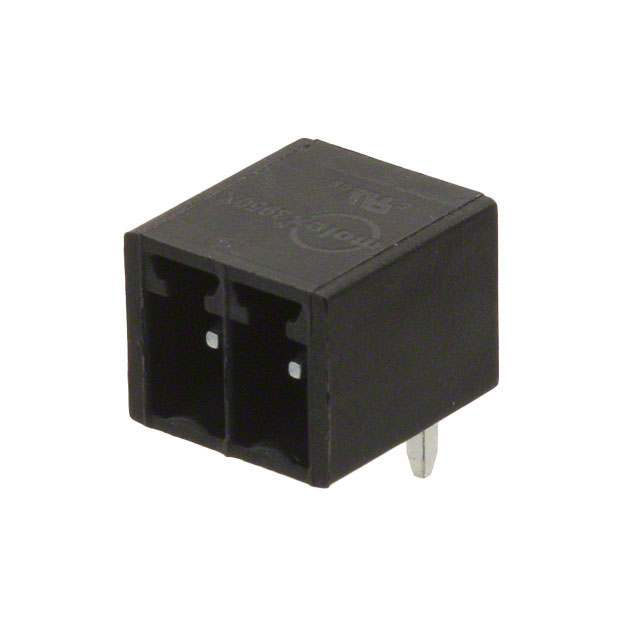

TERM BLOCK HDR 2POS 90DEG 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents39500-001 Prod Spec

0395021002

Active

Molex

TERM BLOCK HDR 2POS 90DEG 3.5MM

Deep-Dive with AI

Documents39500-001 Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395021002

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.56 mm
Contact Tail Length	0.14 in
Current - UL	8 A
Header Orientation	90°, Right Angle
Insulation Height	0.27 "
Insulation Height	6.86 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039502 Series

Part	Insulation Height	Insulation Height	Current - UL	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Header Orientation	Contact Mating Finish	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Voltage - UL	Type	Termination Style	Mounting Type	Number of Positions	Number of Levels	Positions Per Level	Pitch [x]	Pitch [x]
Molex 0395021502	0.27 "	6.86 mm	8 A	Black	-40 °C	105 ░C	Brass	90° Right Angle	Gold	UL94 V-0	3.56 mm	0.14 in	300 V	Header Male Pins Shrouded (4 Side)	Solder	Through Hole	2	1	2	3.5 mm	0.138 in
Molex 0395021011	0.27 "	6.86 mm	8 A	Black	-40 °C	105 ░C	Brass	90° Right Angle	Tin	UL94 V-0	3.56 mm	0.14 in	300 V	Header Male Pins Shrouded (4 Side)	Solder	Through Hole	11	1	11	3.5 mm	0.138 in
Molex 0395026004	0.27 "	6.86 mm	8 A	Green	-40 °C	105 ░C	Brass	90° Right Angle	Tin	UL94 V-0	3.56 mm	0.14 in	300 V	Header Male Pins Shrouded (4 Side)	Solder	Through Hole	4	1	4	3.5 mm	0.138 in
Molex 0395021511	0.27 "	6.86 mm	8 A	Black	-40 °C	105 ░C	Brass	90° Right Angle	Gold	UL94 V-0	3.56 mm	0.14 in	300 V	Header Male Pins Shrouded (4 Side)	Solder	Through Hole	11	1	11	3.5 mm	0.138 in
Molex 0395026506	0.27 "	6.86 mm	8 A	Green	-40 °C	105 ░C	Brass	90° Right Angle	Gold	UL94 V-0	3.56 mm	0.14 in	300 V	Header Male Pins Shrouded (4 Side)	Solder	Through Hole	6	1	6	3.5 mm	0.138 in
Molex 0395026509	0.27 "	6.86 mm	8 A	Green	-40 °C	105 ░C	Brass	90° Right Angle	Gold	UL94 V-0	3.56 mm	0.14 in	300 V	Header Male Pins Shrouded (4 Side)	Solder	Through Hole	9	1	9	3.5 mm	0.138 in
Molex 0395021512	0.27 "	6.86 mm	8 A	Black	-40 °C	105 ░C	Brass	90° Right Angle	Gold	UL94 V-0	3.56 mm	0.14 in	300 V	Header Male Pins Shrouded (4 Side)	Solder	Through Hole	12	1	12	3.5 mm	0.138 in
Molex 0395026017	0.27 "	6.86 mm	8 A	Green	-40 °C	105 ░C	Brass	90° Right Angle	Tin	UL94 V-0	3.56 mm	0.14 in	300 V	Header Male Pins Shrouded (4 Side)	Solder	Through Hole		1	17	3.5 mm	0.138 in
Molex 0395026510	0.27 "	6.86 mm	8 A	Green	-40 °C	105 ░C	Brass	90° Right Angle	Gold	UL94 V-0	3.56 mm	0.14 in	300 V	Header Male Pins Shrouded (4 Side)	Solder	Through Hole	10	1	10	3.5 mm	0.138 in
Molex 0395021002	0.27 "	6.86 mm	8 A	Black	-40 °C	105 ░C	Brass	90° Right Angle	Tin	UL94 V-0	3.56 mm	0.14 in	300 V	Header Male Pins Shrouded (4 Side)	Solder	Through Hole	2	1	2	3.5 mm	0.138 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.72
		10	$ 0.53
		100	$ 0.41
		500	$ 0.35
		1800	$ 0.31
		5400	$ 0.28
		10800	$ 0.27

Description

General part information

039502 Series

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

39500-001 Prod Spec

Datasheet
