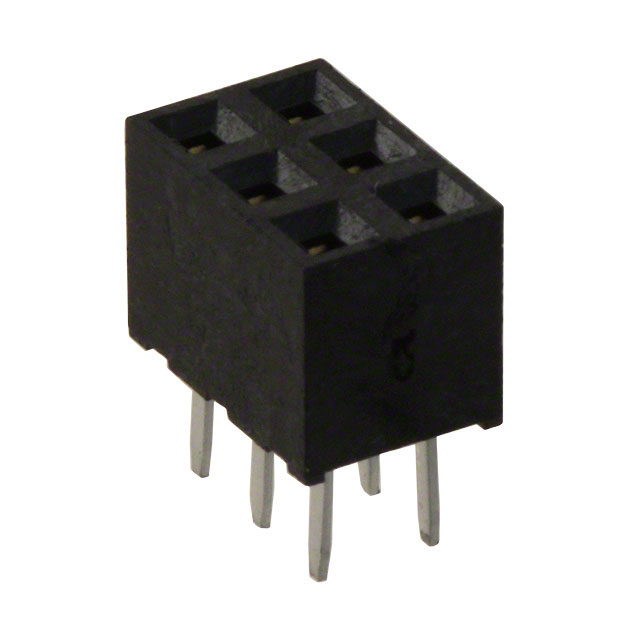

M22-7140342

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, VERTICAL, M22 SERIES, THROUGH HOLE, RECEPTACLE, 6, 2 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 M22 Series Spec Sheet +4

M22-7140342

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, VERTICAL, M22 SERIES, THROUGH HOLE, RECEPTACLE, 6, 2 MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003 M22 Series Spec Sheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-7140342

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	5.8 mm, 6.8 mm, 6.55 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	500 VAC

M22-714 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Length - Post	Contact Length - Post	Termination	Number of Positions	Contact Shape	Insulation Height	Insulation Height	Contact Finish - Post	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type	Insulation Color	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Style	Material Flammability Rating	Insulation Material	Applications	Mounting Type	Number of Positions Loaded	Mated Stacking Heights	Contact Material	Number of Rows
Harwin Inc. M22-7141242	0.079 in	2 mm	500 VAC	0.094 in	2.4 mm	Solder	24	Square	0.173 in	4.4 mm	Tin	2 A	-40 °C	105 ░C	Push-Pull	Receptacle	Black	Gold	0.079 in	2 mm	Female Socket	Board to Board Cable	UL94 V-0	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Through Hole	All	5.8 mm 6.55 mm 6.8 mm	Phosphor Bronze	2
Harwin Inc. M22-7140342	0.079 in	2 mm	500 VAC	0.094 in	2.4 mm	Solder	6	Square	0.173 in	4.4 mm	Tin	2 A	-40 °C	105 ░C	Push-Pull	Receptacle	Black	Gold	0.079 in	2 mm	Female Socket	Board to Board Cable	UL94 V-0	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Through Hole	All	5.8 mm 6.55 mm 6.8 mm	Phosphor Bronze	2
Harwin Inc. M22-7141642	0.079 in	2 mm	500 VAC	0.094 in	2.4 mm	Solder		Square	0.173 in	4.4 mm	Tin	2 A	-40 °C	105 ░C	Push-Pull	Receptacle	Black	Gold	0.079 in	2 mm	Female Socket	Board to Board Cable	UL94 V-0	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Through Hole	All	5.8 mm 6.55 mm 6.8 mm	Phosphor Bronze	2
Harwin Inc. M22-7141342	0.079 in	2 mm	500 VAC	0.094 in	2.4 mm	Solder	26	Square	0.173 in	4.4 mm	Tin	2 A	-40 °C	105 ░C	Push-Pull	Receptacle	Black	Gold	0.079 in	2 mm	Female Socket	Board to Board Cable	UL94 V-0	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Through Hole	All	5.8 mm 6.55 mm 6.8 mm	Phosphor Bronze	2
Harwin Inc. M22-7141842	0.079 in	2 mm	500 VAC	0.094 in	2.4 mm	Solder	36	Square	0.173 in	4.4 mm	Tin	2 A	-40 °C	105 ░C	Push-Pull	Receptacle	Black	Gold	0.079 in	2 mm	Female Socket	Board to Board Cable	UL94 V-0	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Through Hole	All	5.8 mm 6.55 mm 6.8 mm	Phosphor Bronze	2
Harwin Inc. M22-7140742	0.079 in	2 mm	500 VAC	0.094 in	2.4 mm	Solder	14	Square	0.173 in	4.4 mm	Tin	2 A	-40 °C	105 ░C	Push-Pull	Receptacle	Black	Gold	0.079 in	2 mm	Female Socket	Board to Board Cable	UL94 V-0	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Through Hole	All	5.8 mm 6.55 mm 6.8 mm	Phosphor Bronze	2
Harwin Inc. M22-7140642	0.079 in	2 mm	500 VAC	0.094 in	2.4 mm	Solder	12	Square	0.173 in	4.4 mm	Tin	2 A	-40 °C	105 ░C	Push-Pull	Receptacle	Black	Gold	0.079 in	2 mm	Female Socket	Board to Board Cable	UL94 V-0	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Through Hole	All	5.8 mm 6.55 mm 6.8 mm	Phosphor Bronze	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.99
		94	$ 0.75
		564	$ 0.61
		1034	$ 0.60
Newark	Each	1	$ 1.32
		10	$ 1.10
		100	$ 0.88
		250	$ 0.83
		500	$ 0.79
		1000	$ 0.75
		2500	$ 0.71

Description

General part information

M22-714 Series

6 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
