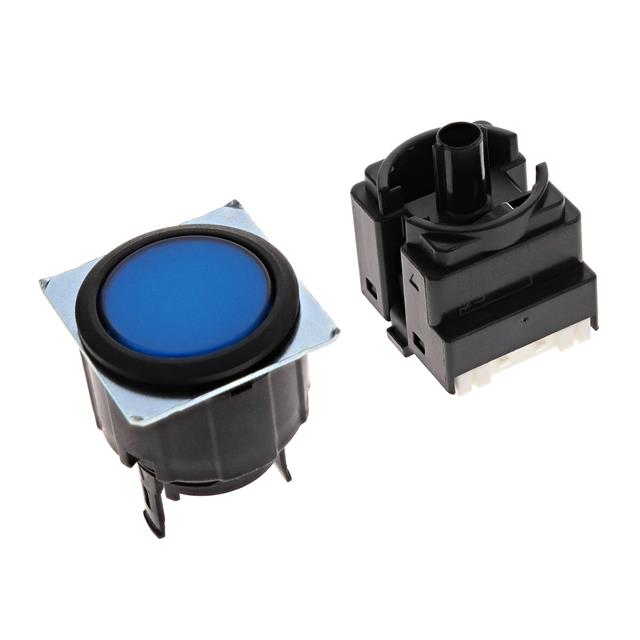

A3U-TBA-A1C-M

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON SPDT 0.1A 30V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON SPDT 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	A3U-TBA-A1C-M

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	200000 Cycles
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	On-Mom
Termination Style	Connector
Type	Standard
Voltage Rating - DC	30 V

Part	Switch Function	Type	Actuator Marking	Color - Actuator/Cap	Termination Style	Current Rating (Amps)	Mounting Type	Ingress Protection	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Mechanical Life	Electrical Life	Voltage Rating - DC
Omron Electronics Inc-EMC Div A3U-TBA-A1C-M	On-Mom	Standard	No Marking	Clear	Connector	100 mA	Panel Mount Front	IP40	25.2 mm	-20 C	70 °C	SPDT	Button Flush Round	1000000 Cycles	200000 Cycles	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
