98704.6

Active

Conta-Clip, Inc.

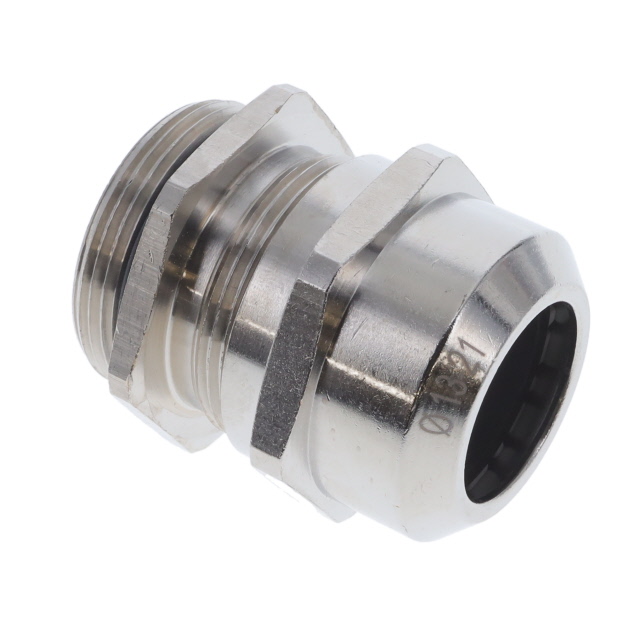

CABLE GLAND 12.95-21.08MM M32

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

CABLE GLAND 12.95-21.08MM M32

Technical Specifications

Parameters and characteristics for this part

Specification	98704.6

Color	Silver
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Outside Cable Diameter (Max) [Max] [diameter]	0.83 in
Outside Cable Diameter (Max) [Max] [diameter]	21.08 mm
Outside Cable Diameter (Min) [diameter]	0.51 in
Outside Cable Diameter (Min) [diameter]	12.95 mm
Panel Hole Size	1.26 in
Panel Hole Size	32 mm
Thread Length	7.87 mm
Thread Length	0.31 in
Thread Size	M32x1.5
Type	Cable Gland

Part	Material	Ingress Protection	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Thread Length	Thread Length	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]	Type	Panel Hole Size	Panel Hole Size
Conta-Clip, Inc. 98704.6	Brass Nickel Plated	IP68 - Dust Tight Waterproof	M32x1.5	0.83 in	21.08 mm	Silver	7.87 mm	0.31 in	0.51 in	12.95 mm	Cable Gland	1.26 in	32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M32x1.5 Silver
