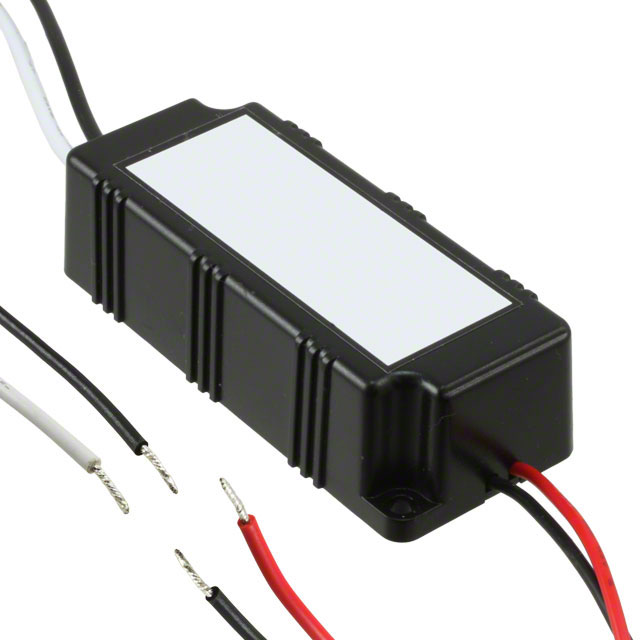

LED12W-48

Active

Thomas Research Products

LED DRIVER CV AC/DC 48V 250MA

Search across all available documentation for this part.

Active

Thomas Research Products

LED DRIVER CV AC/DC 48V 250MA

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Voltage - Input (Min) [Min]	Weight	Weight	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Topology	Power (Watts)	Mounting Type	Current - Output (Max) [Max]	Ratings	Termination Style	Voltage - Input (Max) [Max]	Dimming	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]
Thomas Research Products LED12W-48	CE cULus	OCP OVP SCP	-30 ░C	60 °C	48 V	90 VAC	127.91 g	0.282 lb	Constant Voltage	85 mm	0.91 in	1.42 in	36 mm	3.35 in	23 mm	1	AC DC Converter	12 W	Chassis Mount	250 mA	IP66	Wire Leads	305 VAC
Thomas Research Products LED12W-24-C0500-D	CE cURus	OCP OVP SCP				90 VAC	127.91 g	0.282 lb	Constant Current							1	AC DC Converter	12 W	Chassis Mount	500 mA	IP66	Wire Leads	305 VAC	Analog	80 %	24 V	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 35.59

General part information

250mA 48V Constant Voltage LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources
