PSR1636-10

Active

Parlex USA LLC

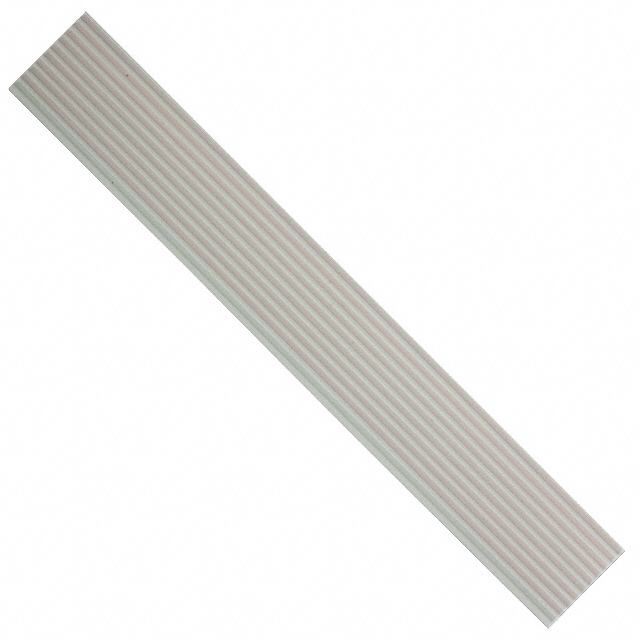

CABLE FFC 10COND 0.050" 500'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSR1636-10

Active

Parlex USA LLC

CABLE FFC 10COND 0.050" 500'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSR1636-10

Cable Length	152.4 m
Cable Length	500 ft
Cable Width [x]	0.55 "
Cable Width [x]	13.97 mm
Conductor Material	Copper, Bare
Current Rating (Amps)	2.5 A
Features	Conductor 1 Tinned
Jacket (Insulation) Material	Polyester
Jacket (Insulation) Thickness	0.05 mm
Jacket (Insulation) Thickness	0.002 in
Number of Conductors	10
Operating Temperature	105 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2643
Voltage Rating	300 VDC
Wire Gauge	30 AWG

PSR1636 Series

Part	Wire Gauge	Current Rating (Amps)	Cable Width	Cable Width	Cable Length	Cable Length	Voltage Rating	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature	Features	Pitch [x]	Pitch [x]	Conductor Material	Ratings	Jacket (Insulation) Material	Cable Width [x]	Cable Width [x]	Cable Width [y]	Cable Width [y]
Parlex USA LLC PSR1636-50	30 AWG	2.5 A	2.55 in	64.77 mm	152.4 m	500 ft	300 VDC	50	0.05 mm	0.002 in	105 C	Conductor 1 Tinned	0.05 in	1.27 mm	Copper Bare	UL Style 2643	Polyester
Parlex USA LLC PSR1636-12	30 AWG	2.5 A	0.65 in	16.51 mm	152.4 m	500 ft	300 VDC	12	0.05 mm	0.002 in	105 C	Conductor 1 Tinned	0.05 in	1.27 mm	Copper Bare	UL Style 2643	Polyester
Parlex USA LLC PSR1636-14	30 AWG	2.5 A	0.75 in	19.05 mm	152.4 m	500 ft	300 VDC	14	0.05 mm	0.002 in	105 C	Conductor 1 Tinned	0.05 in	1.27 mm	Copper Bare	UL Style 2643	Polyester
Parlex USA LLC PSR1636-40	30 AWG	2.5 A	2.05 in	52.07 mm	152.4 m	500 ft	300 VDC	40	0.05 mm	0.002 in	105 C	Conductor 1 Tinned	0.05 in	1.27 mm	Copper Bare	UL Style 2643	Polyester
Parlex USA LLC PSR1636-10	30 AWG	2.5 A			152.4 m	500 ft	300 VDC	10	0.05 mm	0.002 in	105 C	Conductor 1 Tinned	0.05 in	1.27 mm	Copper Bare	UL Style 2643	Polyester	0.55 "	13.97 mm
Parlex USA LLC PSR1636-22	30 AWG	2.5 A			152.4 m	500 ft	300 VDC	22	0.05 mm	0.002 in	105 C	Conductor 1 Tinned	0.05 in	1.27 mm	Copper Bare	UL Style 2643	Polyester	1.15 in	29.21 mm
Parlex USA LLC PSR1636-17	30 AWG	2.5 A			152.4 m	500 ft	300 VDC	17	0.05 mm	0.002 in	105 C	Conductor 1 Tinned	0.05 in	1.27 mm	Copper Bare	UL Style 2643	Polyester			22.86 mm	0.9 in
Parlex USA LLC PSR1636-36	30 AWG	2.5 A	1.85 in	46.99 mm	152.4 m	500 ft	300 VDC	36	0.05 mm	0.002 in	105 C	Conductor 1 Tinned	0.05 in	1.27 mm	Copper Bare	UL Style 2643	Polyester
Parlex USA LLC PSR1636-05	30 AWG	2.5 A	0.3 in	7.57 mm	152.4 m	500 ft	300 VDC	5	0.05 mm	0.002 in	105 C	Conductor 1 Tinned	0.05 in	1.27 mm	Copper Bare	UL Style 2643	Polyester
Parlex USA LLC PSR1636-29	30 AWG	2.5 A	1.5 in	38.1 mm	152.4 m	500 ft	300 VDC	29	0.05 mm	0.002 in	105 C	Conductor 1 Tinned	0.05 in	1.27 mm	Copper Bare	UL Style 2643	Polyester

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 443.87
		2	$ 408.50
		3	$ 389.17
		5	$ 366.16
		7	$ 351.77
		10	$ 343.75

Description

General part information

PSR1636 Series

10 Conductor 0.050" (1.27mm) Flat Flex Cable
