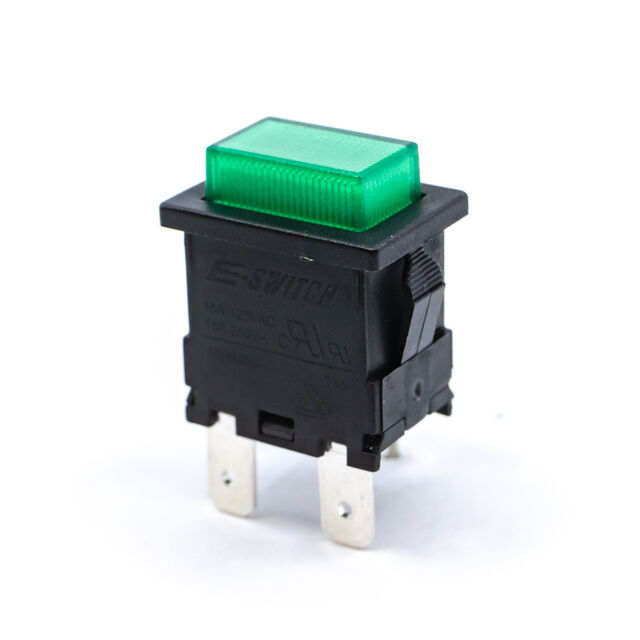

PB1973BBLKGILEF0
ActiveE-Switch
SWITCH PUSH SPST-NO 15A 250V
Deep-Dive with AI
Search across all available documentation for this part.
PB1973BBLKGILEF0
ActiveE-Switch
SWITCH PUSH SPST-NO 15A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PB1973BBLKGILEF0 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 10 A, 15 A |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 13 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 VDC |
PB1973 Series
| Part | Electrical Life | Current Rating (Amps) | Type | Mounting Type | Actuator Type | Actuator Marking | Voltage Rating - DC | Mechanical Life | Voltage Rating - AC | Termination Style | Switch Function | Color - Actuator/Cap | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Circuit | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | 10000 Cycles | 10 A 15 A | Standard | Panel Mount Snap-In | Rectangular Button | No Marking | 125 VDC | 30000 Steps | 250 V | Quick Connect - 0.187" (4.7mm) | On-Off | Black | 55 °C | -10 °C | DPST | 13 mm | 19.2 mm | ||
E-Switch | 10000 Cycles | 10 A 15 A | Standard | Panel Mount Snap-In | Rectangular Button | No Marking | 125 VDC | 30000 Steps | 250 V | Quick Connect - 0.187" (4.7mm) | Off-Mom | Red | 55 °C | -10 °C | SPST-NO | 13 mm | 19.2 mm | ||
E-Switch | 10000 Cycles | 10 A 15 A | Standard | Panel Mount Snap-In | Rectangular Button | No Marking | 125 VDC | 30000 Steps | 250 V | Quick Connect - 0.187" (4.7mm) | Off-Mom | Green | 55 °C | -10 °C | SPST-NO | 13 mm | 19.2 mm | ||
E-Switch | 10000 Cycles | 10 A 15 A | Illuminated Standard | Panel Mount Snap-In | Rectangular Button | No Marking | 125 VDC | 30000 Steps | 250 V | Quick Connect - 0.187" (4.7mm) | On-Off | Red | 55 °C | -10 °C | DPST | 13 mm | 19.2 mm | Incandescent Red | 24 V |
E-Switch | 10000 Cycles | 10 A 15 A | Illuminated Standard | Panel Mount Snap-In | Rectangular Button | No Marking | 125 VDC | 30000 Steps | 250 V | Quick Connect - 0.187" (4.7mm) | Off-Mom | Red | 55 °C | -10 °C | SPST-NO | 13 mm | 19.2 mm | Neon Red | 250 VAC |
E-Switch | 10000 Cycles | 10 A 15 A | Illuminated Standard | Panel Mount Snap-In | Rectangular Button | No Marking | 125 VDC | 30000 Steps | 250 V | Quick Connect - 0.187" (4.7mm) | Off-Mom | Green | 55 °C | -10 °C | SPST-NO | 13 mm | 19.2 mm | Green Incandescent | 24 V |
E-Switch | 10000 Cycles | 10 A 15 A | Illuminated Standard | Panel Mount Snap-In | Rectangular Button | No Marking | 125 VDC | 30000 Steps | 250 V | Quick Connect - 0.187" (4.7mm) | Off-Mom | Green | 55 °C | -10 °C | SPST-NO | 13 mm | 19.2 mm | Green Incandescent | 12 VDC |
E-Switch | 10000 Cycles | 10 A 15 A | Standard | Panel Mount Snap-In | Rectangular Button | No Marking | 125 VDC | 30000 Steps | 250 V | Quick Connect - 0.187" (4.7mm) | Off-Mom | Black | 55 °C | -10 °C | SPST-NO | 13 mm | 19.2 mm | ||
E-Switch | 10000 Cycles | 10 A 15 A | Illuminated Standard | Panel Mount Snap-In | Rectangular Button | No Marking | 125 VDC | 30000 Steps | 250 V | Quick Connect - 0.187" (4.7mm) | On-Off | Green | 55 °C | -10 °C | SPST | 13 mm | 19.2 mm | Green Incandescent | 12 VDC |
E-Switch | 10000 Cycles | 10 A 15 A | Illuminated Standard | Panel Mount Snap-In | Rectangular Button | No Marking | 125 VDC | 30000 Steps | 250 V | Quick Connect - 0.187" (4.7mm) | Off-Mom | Yellow | 55 °C | -10 °C | SPST-NO | 13 mm | 19.2 mm | Incandescent Yellow | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 600 | $ 1.57 | |
Description
General part information
PB1973 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
