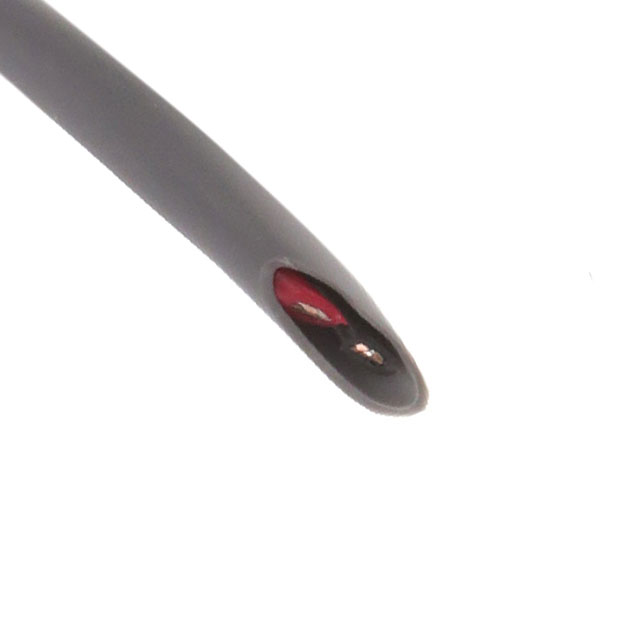

M13402 SL199

Active

ALPHA WIRE

CABLE 2COND 20AWG SLATE 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 20AWG SLATE 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M13402 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	4.57 mm
Jacket (Insulation) Diameter [diameter]	0.18 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2509
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket Color	Number of Conductors	Wire Gauge	Voltage	Cable Type	Length	Length	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
ALPHA WIRE M13402 SL199	Slate	2	20 AWG	300 V	Multi-Conductor	914.4 m	3000 ft	UL Style 2509	28	7	Poly-Vinyl Chloride (PVC)	Copper Tinned	-20 C	80 C	0.02 in	0.508 mm	Poly-Vinyl Chloride (PVC)	4.57 mm	0.18 in
ALPHA WIRE M13402 SL005	Slate	2	20 AWG	300 V	Multi-Conductor			UL Style 2509	28	7	Poly-Vinyl Chloride (PVC)	Copper Tinned	-20 C	80 C	0.02 in	0.508 mm	Poly-Vinyl Chloride (PVC)	4.57 mm	0.18 in	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 0.44

General part information

2 Conductor Multi-Conductor Cable Slate 20 AWG 3000' (914.4m)
