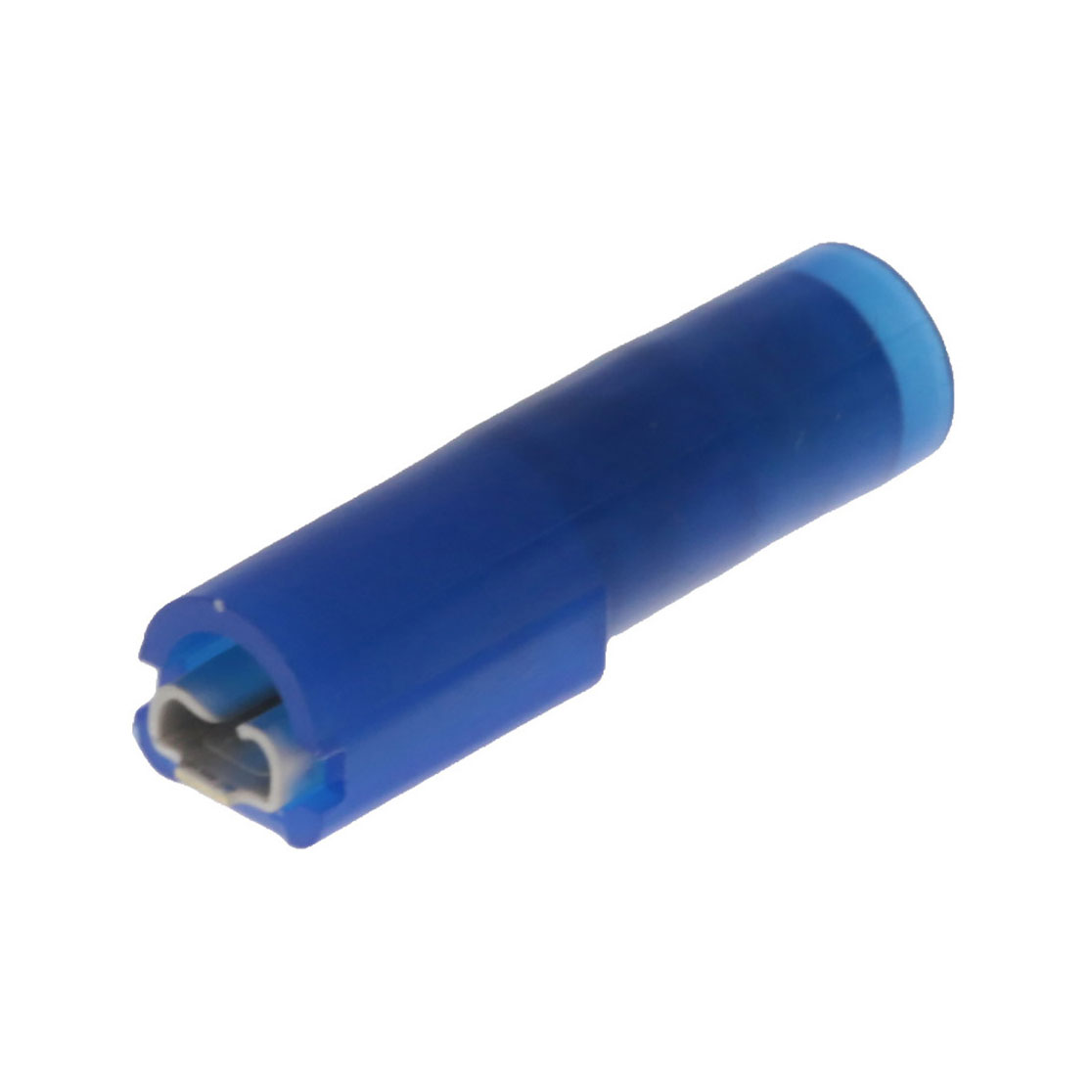

0190020036

Active

Molex

CONN QC RCPT 14-16AWG 0.110

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Datasheet

0190020036

Active

Molex

CONN QC RCPT 14-16AWG 0.110

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190020036

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter [diameter]	3.56 mm
Insulation Diameter [diameter]	0.14 in
Length - Overall [x]	20.32 mm
Length - Overall [x]	0.8 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	2.79 mm
Tab Width	0.11 "
Terminal Type	Standard
Termination	Crimp

019002 Series

Part	Gender	Tab Width	Tab Width	Termination	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Finish	Mounting Type	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Color	Terminal Type	Insulation
Molex 0190020014	Female	2.79 mm	0.11 "	Crimp	Brass	22 AWG	17.5 AWG	0.12 in	3.05 mm	Tin	Free Hanging (In-Line)	0.02 "	0.51 mm	20.32 mm	0.8 in	Red	Standard	Fully Insulated
Molex 0190020032	Female	4.75 mm	0.187 in	Crimp	Brass			0.14 in	3.56 mm	Electro-Tin	Free Hanging (In-Line)	0.032 in	0.81 mm	20.32 mm	0.8 in	Blue	Standard	Fully Insulated
Molex 0190020015	Female	2.79 mm	0.11 "	Crimp	Brass	22 AWG	17.5 AWG	0.12 in	3.05 mm	Tin	Free Hanging (In-Line)	0.02 "	0.51 mm	20.32 mm	0.8 in	Red	Standard	Fully Insulated
Molex 0190020021	Female	5.21 mm	0.205 in	Crimp	Brass	22 AWG	17.5 AWG	0.12 in	3.05 mm	Electro-Tin	Free Hanging (In-Line)	0.032 in	0.81 mm	20.32 mm	0.8 in	Red	Standard	Fully Insulated
Molex 0190020001	Female	6.35 mm	0.25 in	Crimp	Brass	22 AWG	17.5 AWG	0.12 in	3.05 mm	Tin	Free Hanging (In-Line)	0.032 in	0.81 mm	22.61 mm	0.89 in	Red	Standard	Fully Insulated
Molex 0190020036	Female	2.79 mm	0.11 "	Crimp	Brass			0.14 in	3.56 mm	Electro-Tin	Free Hanging (In-Line)	0.02 "	0.51 mm	20.32 mm	0.8 in	Blue	Standard	Fully Insulated
Molex 0190020005	Female	4.75 mm	0.187 in	Crimp	Brass	22 AWG	17.5 AWG	0.12 in	3.05 mm	Tin	Free Hanging (In-Line)	0.02 "	0.51 mm	20.32 mm	0.8 in	Red	Standard	Fully Insulated
Molex 0190020029	Female	4.75 mm	0.187 in	Crimp	Brass			0.14 in	3.56 mm	Electro-Tin	Free Hanging (In-Line)	0.02 "	0.51 mm	20.32 mm	0.8 in	Blue	Standard	Fully Insulated
Molex 0190020024	Female	6.35 mm	0.25 in	Crimp	Brass			0.142 in	3.61 mm	Tin	Free Hanging (In-Line)	0.032 in	0.81 mm	22.61 mm	0.89 in	Blue	Standard	Fully Insulated
Molex 0190020004	Female	6.35 mm	0.25 in	Crimp	Brass	22 AWG	17.5 AWG	0.12 in	3.05 mm	Tin	Free Hanging (In-Line)	0.032 in	0.81 mm	22.61 mm	0.89 in	Red	Standard	Fully Insulated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7500	$ 0.22

Description

General part information

019002 Series

0.110" (2.79mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
