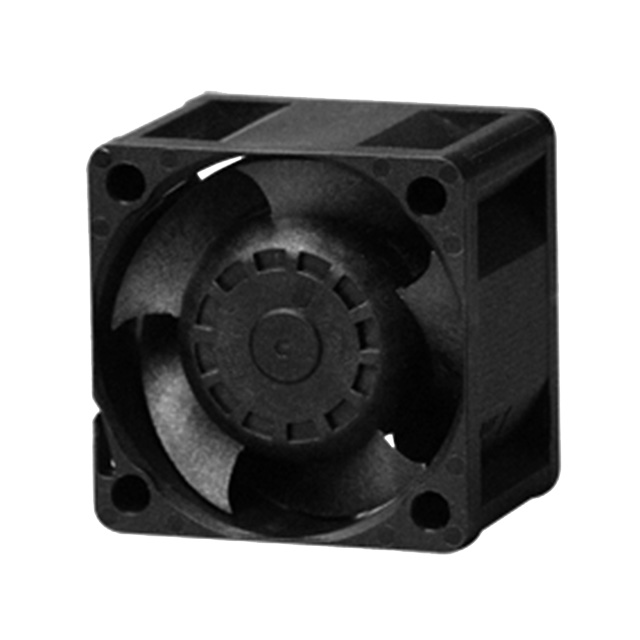

VF38281BX-000U-A9H

Active

Sunon Fans

FAN AXIAL 38X28MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 38X28MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	VF38281BX-000U-A9H

Air Flow	0.678 m³/min
Air Flow	24.2 CFM
Approval Agency	TUV, cUR, UL, CE
Bearing Type	Ball
Current Rating (Amps)	0.87 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	61.6 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	10.44 W
RPM	27000 RPM
Size / Dimension [x]	38 mm
Size / Dimension [z]	38 mm
Static Pressure	886.7 Pa
Static Pressure	3.56 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Weight	0.098 lb
Weight	44.45 g
Width [y]	28 mm

Part	Power (Watts)	Termination	Fan Type	Bearing Type	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Current Rating (Amps)	Width [y]	Material - Blade	Weight	Weight	Approval Agency	Noise	Lifetime @ Temp.	Voltage - Rated	RPM	Static Pressure	Static Pressure
Sunon Fans VF38281BX-000U-A9H	10.44 W	2 Wire Leads	Tubeaxial	Ball	Auto Restart	70 °C	70 °C	-10 °C	-10 °C	38 mm	38 mm	0.678 m³/min	24.2 CFM	0.87 A	28 mm	Polybutylene Terephthalate (PBT)	0.098 lb	44.45 g	CE cUR TUV UL	61.6 dB(A)	70000 Hrs	12 VDC	27000 RPM	886.7 Pa	3.56 in H2O

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 16.49

General part information

Fan Tubeaxial 12VDC Square - 38mm L x 38mm H Ball 24.2 CFM (0.678m³/min) 2 Wire Leads
