EDAC Inc.

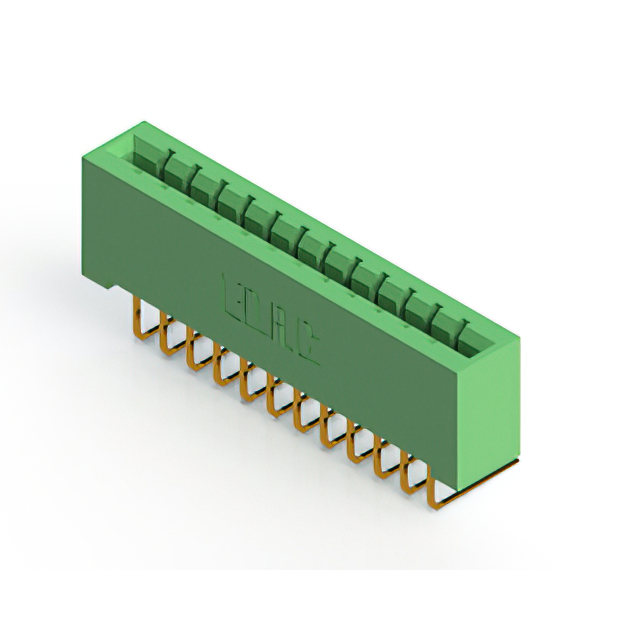

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

333-012-558-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-012-558-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions/Bay/Row [custom]	12
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

333-012 Series

...

Part	Contact Material	Read Out	Gender	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Mounting Type	Contact Type	Pitch [x]	Pitch [x]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Color	Termination Rows	Features	Number of Positions	Flange Feature	Flange Feature
EDAC Inc. 333-012-555-203	Copper Alloy	Dual	Female	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	2	6	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Non Specified - Dual Edge	Board Edge Straddle Mount	Cantilever	0.156 in	3.96 mm	Polyester Thermoplastic	10 Áin	0.25 Ám	Green	2	Card Extender	12
EDAC Inc. 333-012-556-808	Copper Alloy	Dual	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	2	6		4-40 Threaded Insert Top Mount Opening		Non Specified - Dual Edge	Board Edge Straddle Mount	Cantilever	0.156 in	3.96 mm	Polyester Thermoplastic	10 Áin	0.25 Ám	Green	2	Card Extender	12
EDAC Inc. 333-012-558-101	Copper Alloy	Single	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	1	12				Non Specified - Single Edge	Through Hole Right Angle	Cantilever	0.156 in	3.96 mm	Polyester Thermoplastic	10 Áin	0.25 Ám	Green	1		12
EDAC Inc. 333-012-541-204	Copper Alloy	Dual	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	2	6	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Non Specified - Dual Edge	Through Hole	Cantilever	0.156 in	3.96 mm	Polyester Thermoplastic	10 Áin	0.25 Ám	Green	2		12
EDAC Inc. 333-012-558-607	Copper Alloy	Single	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	1	12		M3 Threaded Insert Top Mount Opening		Non Specified - Single Edge	Through Hole Right Angle	Cantilever	0.156 in	3.96 mm	Polyester Thermoplastic	10 Áin	0.25 Ám	Green	1		12
EDAC Inc. 333-012-541-103	Copper Alloy	Single	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	1	12	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Non Specified - Single Edge	Through Hole	Cantilever	0.156 in	3.96 mm	Polyester Thermoplastic	10 Áin	0.25 Ám	Green	1		12
EDAC Inc. 333-012-500-612	Copper Alloy	Single	Female	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	1	12		Side Mount Opening Unthreaded		Non Specified - Single Edge	Through Hole	Cantilever	0.156 in	3.96 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Green	1		12	3.25 mm	0.128 in
EDAC Inc. 333-012-524-612	Copper Alloy	Single	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	1	12		Side Mount Opening Unthreaded		Non Specified - Single Edge	Through Hole	Cantilever	0.156 in	3.96 mm	Polyester Thermoplastic	10 Áin	0.25 Ám	Green	1		12	3.25 mm	0.128 in
EDAC Inc. 333-012-527-208	Copper Alloy	Dual	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	2	6		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Dual Edge	Through Hole	Cantilever	0.156 in	3.96 mm	Polyester Thermoplastic			Green	2		12
EDAC Inc. 333-012-523-103	Copper Alloy	Single	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	1	12	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Non Specified - Single Edge	Through Hole	Cantilever	0.156 in	3.96 mm	Polyester Thermoplastic	10 Áin	0.25 Ám	Green	1		12
