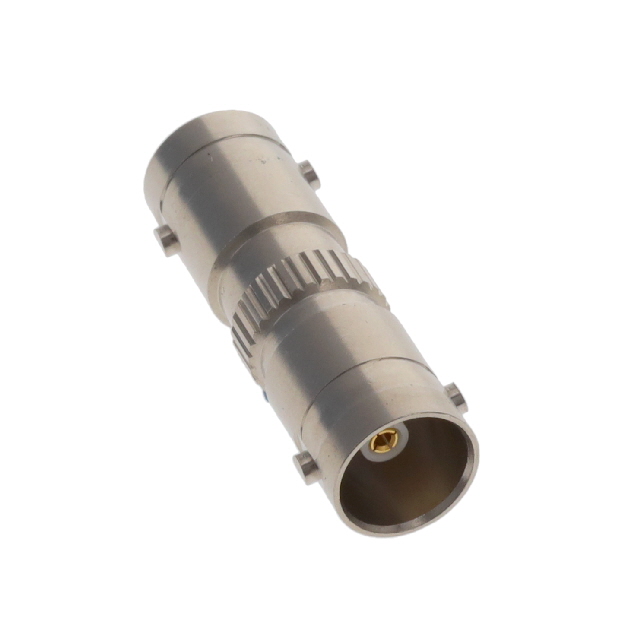

R142704000W

Active

Radiall USA, Inc.

BNC / FEMALE-FEMALE ADAPTER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / FEMALE-FEMALE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	R142704000W

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Style	Center Gender	Center Contact Material	Convert From (Adapter End)	Center Contact Plating	Frequency - Max [Max]	Adapter Series	Adapter Type	Body Material	Insertion Loss	Dielectric Material	Fastening Type	Body Finish	Convert To (Adapter End)	Mounting Type	Conversion Type	Impedance
Radiall USA, Inc. R142703000W	-65 ░C	165 °C	500	Straight	Male to Male	Brass	BNC Plug Male Pin	Gold	1.5 GHz	BNC to BNC	Plug to Plug	Brass	0.2 dB	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Nickel	BNC Plug Male Pin	Free Hanging (In-Line)	Same Series	75 Ohms
Radiall USA, Inc. R142704000W	-65 ░C	165 °C	500	Straight	Female to Female	Beryllium Copper	BNC Jack Female Socket	Gold	1.5 GHz	BNC to BNC	Jack to Jack	Brass		Polytetrafluoroethylene (PTFE)	Bayonet Lock	Nickel	BNC Jack Female Socket	Free Hanging (In-Line)	Same Series	75 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
